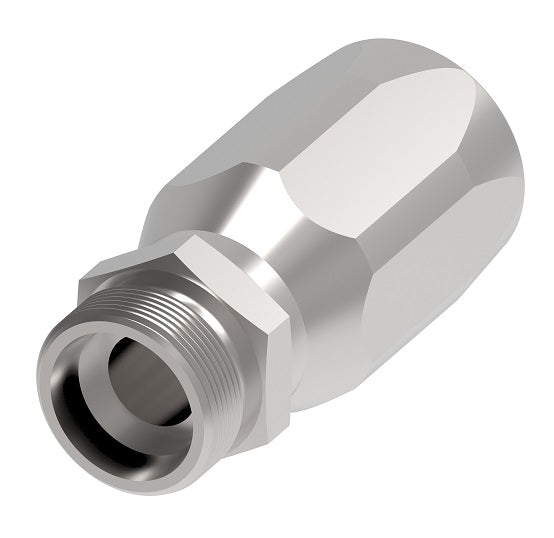

487-16-16S Aeroquip by Danfoss | 5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | -16 Male Thread x -16 Hose Barb | Carbon Steel
487-16-16S Aeroquip by Danfoss | 5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | -16 Male Thread x -16 Hose Barb | Carbon Steel
487-16-16S Aeroquip by Danfoss | 5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | -16 Male Thread x -16 Hose Barb | Carbon Steel

487-16-16S Aeroquip by Danfoss | 5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | -16 Male Thread x -16 Hose Barb | Carbon Steel

Sale price$90.98

Aeroquip® by Danfoss
5400 Series | Male SAE 100R5 Low Air Inclusion Refrigerant Reusable Fitting | Straight

For use with 5400 Series Low Air Inclusion Refrigerant Quick Disconnect Couplings.

O-Ring Required.

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $85.52
20–59 $77.33
60+ $68.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • 5400 Series
Shape:

Straight

Material(s):
  • Carbon Steel
Carbon Steel
Part number		 Body Size Hose Size Thread Dimensions Required O-Ring
Part number
487-4-4S 1/4" -4 1/2-20 .92"
(23.4mm)		 22546-12
487-4-6S 1/4" -6 1/2-20 .96"
(24.4mm)		 22546-12
487-8-6S 1/2" -6 7/8-20 .96"
(24.4mm)		 22546-17
487-8-8S 1/2" -8 7/8-20 1.06"
(26.9mm)		 22546-17
487-12-12S 3/4" -12 1-1/4-18 1.07"
(27.2mm)		 22546-23
487-16-16S 1" -16 1-19/32-20 1.01"
(25.7mm)		 22546-28
487-16-20S 1" -20 - - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
