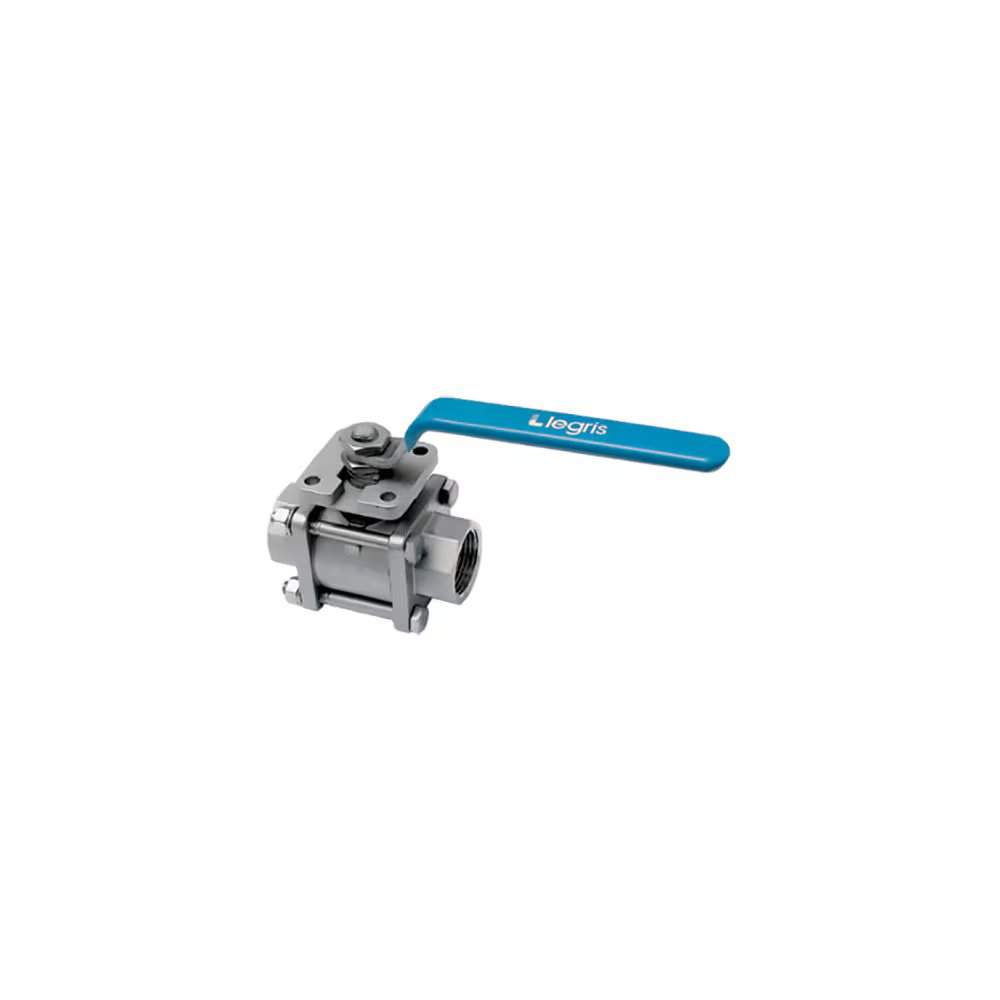

4832 40 49 by Parker | Legris In-Line 3-Piece Ball Valve w/ Fixing Plate | 1-1/2" Female BSPP Thread | 55 mm Hex | Straight | 316L Stainless Steel

4832 40 49 by Parker | Legris In-Line 3-Piece Ball Valve w/ Fixing Plate | 1-1/2" Female BSPP Thread | 55 mm Hex | Straight | 316L Stainless Steel

Sale price$411.51

by Parker Hannifin
Stainless Steel Series:4832 2/2 In-Line 3-Piece Ball Valve with Fixing Plate, Female BSPP Thread
Buy More, Save More!
Quantity Price Each
5–14 $386.82
15–29 $349.78
30+ $308.63
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4832 Series
Shape:

Straight

Ends Configuration:
  • 1-1/2in Female BSPP
  • 1-1/2in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: All fluids
  • Working Pressure: 0 to 65 bar
  • Working Temperature: -20°C to +150°C
Advantages:
  • Chemical compatibility
  • High temperature operation: up to +150°C
  • 3 straight versions:
      • - Compact type cannot be disassembled
      - 3-piece can be disassembled
      - Light series for more compactness
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Stem seal: PTFE
  • Seat seals: PTFE
  • Lever: Nickel-plated brass (0465) or 430 stainless steel (4832-4812-4810)
  • Stem: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465)
  • Wear-compensation seal: 2 PTFE seals (0465)
    1 FKM seal (4832-4812-4810)
  • Locking nut and Locking screw: Zinc plated steel
  • Ball: 316L stainless steel (4832-4812-4810) or 303 stainless steel (0465)
Part Number Diameter Nominal (DN) C NP E F G H K L M T Kg
4832 10 13** 10 mm 1/4" 64 mm 18 mm 22 mm 36 mm 50 mm 36 mm 57 mm 110.5 mm 5.5 mm .272 Kg
4832 15 21 15 mm 1/2" 64 mm 20.5 mm 27 mm 36 mm 64 mm 36 mm 65 mm 131.5 mm 6 mm .478 Kg
4832 20 27 20 mm 3/4" 40 mm 22.5 mm 32 mm 42 mm 68 mm 42 mm 76 mm 131.5 mm 5.5 mm .568 Kg
4832 25 34 25 mm 1" 40 mm 27 mm 41 mm 42 mm 78.5 mm 42 mm 92 mm 174.5 mm 6 mm 1.229 Kg
4832 40 49* 40 mm 1-1/2" 25 mm 31 mm 55 mm 50 mm 100 mm 50 mm 116 mm 250.5 mm 6.5 mm 2.146 Kg
4832 50 48* 50 mm 2" 25 mm 36 mm 70 mm 50 mm 107 mm 50 mm 136 mm 250.5 mm 6.5 mm 3.140 Kg

*Models with EC marking **
Without Fixing Plate
Threads conformed to ISO 7/1
