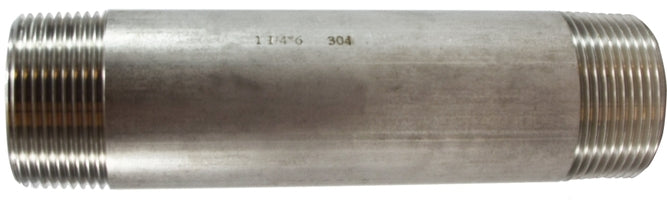

48134 by Midland | Schedule 40 Welded Nipple | 1-1/4" Diameter x 11" Length | Straight | 304 Stainless Steel

48134 by Midland | Schedule 40 Welded Nipple | 1-1/4" Diameter x 11" Length | Straight | 304 Stainless Steel

Sale price$78.34
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • The basic alloy. Type 304 (18-8) is an austenitic steel possessing a minimum of 18% chromium and 8% nickel, combined with a maximum of 0.08% carbon. It is a nonmagnetic steel which cannot be hardened by heat treatment, but instead. must be cold worked to obtain higher tensile strengths.
  • In the marine environment, because of it slightly higher strength and wear resistance than type 316 it is also used for nuts, bolts, screws, and other fasteners. It is also used for springs, cogs, and other components where both wear and corrosion resistance is needed.
Specifications:
  • Both #304 and #316 nipples are NSF/ANSI 372 and NSF/ANSI 61 compliant.
  • Stainless steel pipe nipples are manufactured from stainless steel pipe that conforms to specification ASTM A312/SA312.
  • All stainless steel nipples conform to specification ASTM A733.
  • Threads conform to the requirements of ANSI B1.20.1.
Part Number Length Approx. Weight
(Lbs.)
48120
(48-120)		 1-5/8" (Close) 0.17
48121
(48-121)		 2" 0.23
48122
(48-122)		 2-1/2" 0.35
48123
(48-123)		 3" 0.46
48124
(48-124)		 3-1/2" 0.52
48125
(48-125)		 4" 0.65
48126
(48-126)		 4-1/2" 0.53
48127
(48-127)		 5" 0.60
48128
(48-128)		 5-1/2" 0.61
48129
(48-129)		 6" 0.71
48130 7" 1.17
48131
(48-131)		 8" 1.34
48132 9" 1.71
48133 10" 2.01
48134 11" 2.21
48135
(48-135)		 12" 1.54

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Male NPT
  • 1-1/4in Male NPT
  • Some Ends Match
Material(s):
  • 304 Stainless Steel

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
