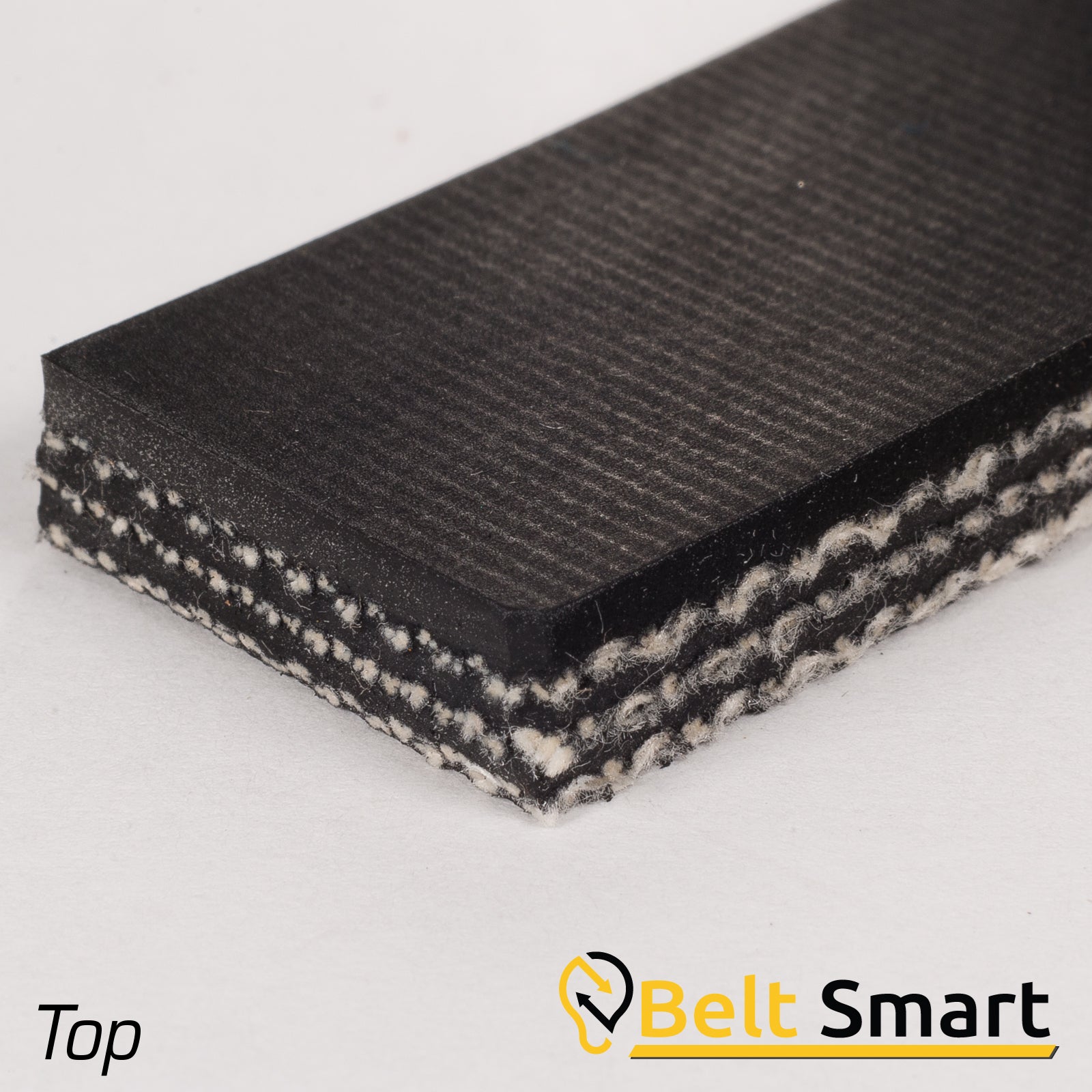

BS048 - #48 Beltservice 3 Ply CP 30 Black 1/16" x FS Conveyor Belt
Beltservice

BS048 - #48 Beltservice 3 Ply CP 30 Black 1/16" x FS Conveyor Belt

Buy this Sample or Fill the Form Out Below!

Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us

Need a Conveyor Belt?

Please provide as much detail you can on your use case and one of our agents will respond ASAP

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
  • General-purpose utility belt
  • Slider bed
  • Lumber industry
  • APC conveyors
Features:
  • Popular general-purpose utility belt featuring tough rubber top cover and friction surface bottom for slider bed use.
  • Heavy duck plies give belt good rigidity and body.
  • Commonly used in the lumber industry.
  • Is often used as 4" wide belts on V-guided APC conveyors.
3 Ply CP 30
Black 1/16" x FS
Pt No.: 48
Thickness 7/32"
Covers 1/16" Smooth x FS
Carcass 28 oz. Cotton
Working Tension
per Inch Width		 90 lbs.
Approx. Weight
Lbs. Per Inch Width		 .102 lbs.
Min. Pulley Diameter 4"
Temperature Range -40 deg. F / 250 deg. F
Clipper Lace #4
Alligator Lace #25
Flexco Hinged R5
Alligator Staple #187
FS = Friction Surface
