4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel

4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel

Sale price$235.08

Aeroquip® by Danfoss

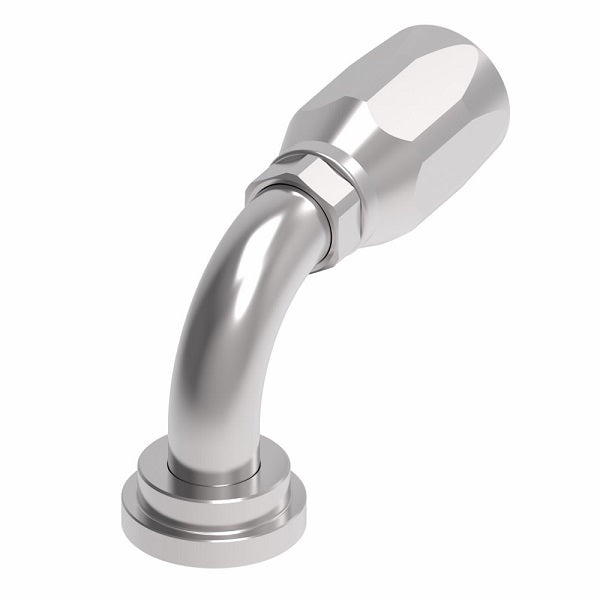

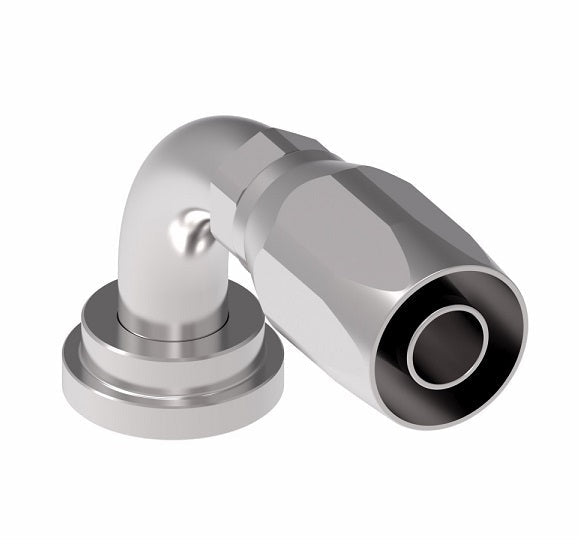

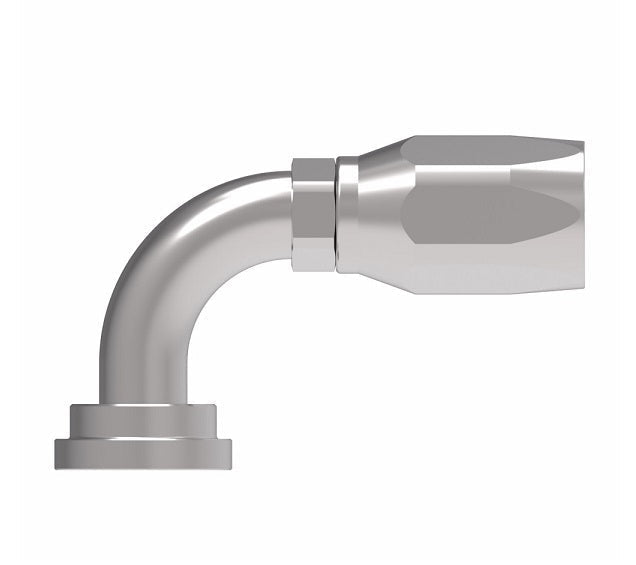

100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - 90° Elbow

SAE J518

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
5–19 $220.98
20–59 $199.82
60+ $176.31
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/4in Code 61 Flange
  • 1-1/4in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4790-8S -08 1.19" 3.15" 1.64" 0.39" 1.62"
4790-12S -12 1.50" 4.11" 2.24" 0.61" 2.12"
4790-16-12S -12 1.75" 4.11" 2.24" 0.61" 2.12"
4790-16S -16 1.75" 4.84" 2.79" 0.82" 2.38"
4790-20-16S -16 2.00" 4.84" 2.79" 0.82" 2.38"
4790-20S -20 2.00" 5.68" 3.36" 1.05" 2.50"
4790-24-20S -20 2.38" 5.68" 3.36" 1.05" 2.50"
4790-24S -24 2.38" 5.91" 3.68" 1.28" 2.75"
4790-32S -32 2.81" 6.84" 4.40" 1.75" 3.25"
