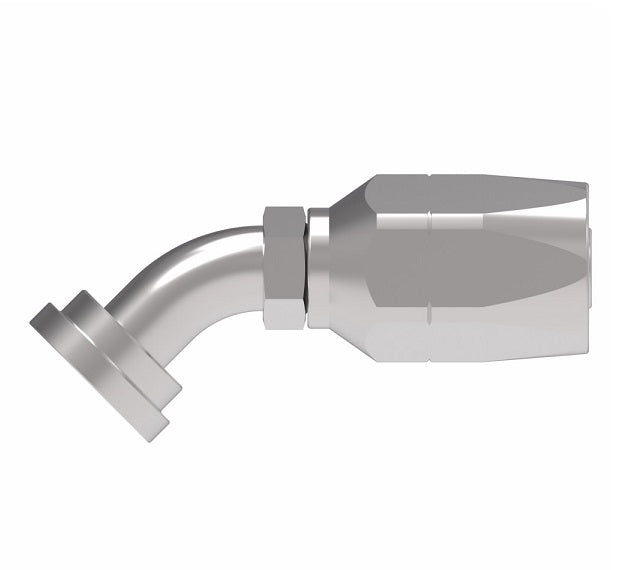

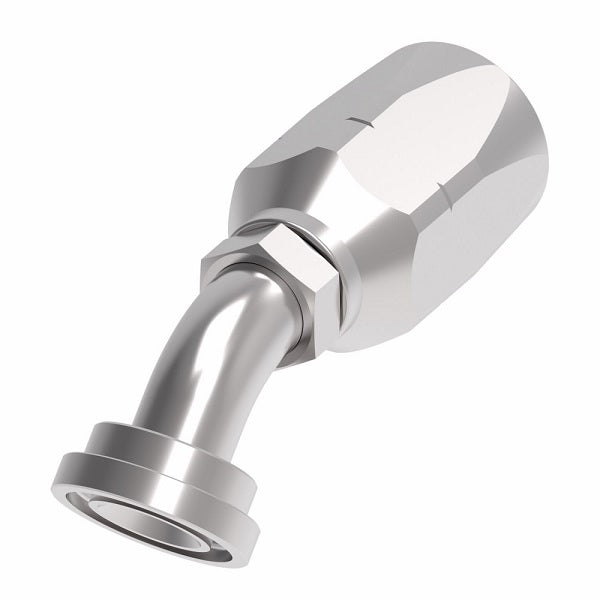

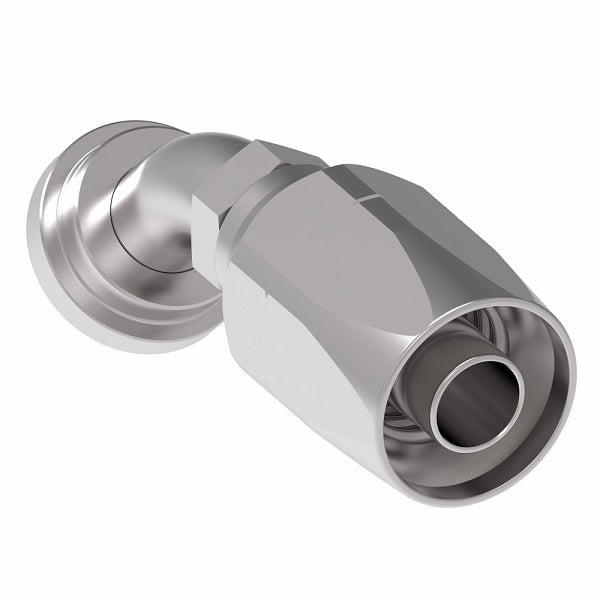

4745-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
4745-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
4745-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel

4745-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel

Sale price$225.92

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - 45° Elbow

SAE J518

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $212.36
20–59 $192.03
60+ $169.44
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1-1/4in Code 61 Flange
  • 1-1/4in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4745-8S -08 1.19" 3.71" 2.20" 0.39" 1.00"
4745-12S -12 1.50" 4.34" 2.47" 0.61" 1.00"
4745-16-12S -12 1.75" 4.39" 2.52" 0.61" 1.00"
4745-16S -16 1.75" 5.09" 3.04" 0.82" 1.12"
4745-20S -20 2.00" 5.78" 3.46" 1.05" 1.12"
4745-24S -24 2.38" 5.87" 3.63" 1.28" 1.12"
4745-32S -32 2.81" 6.63" 4.19" 1.75" 1.25"
