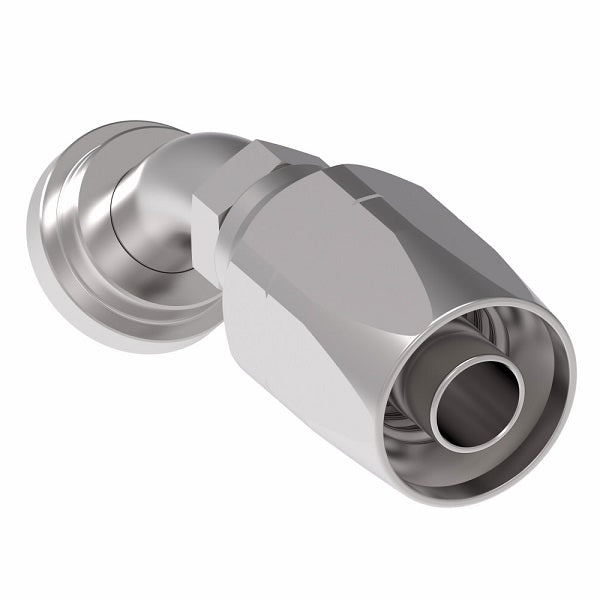

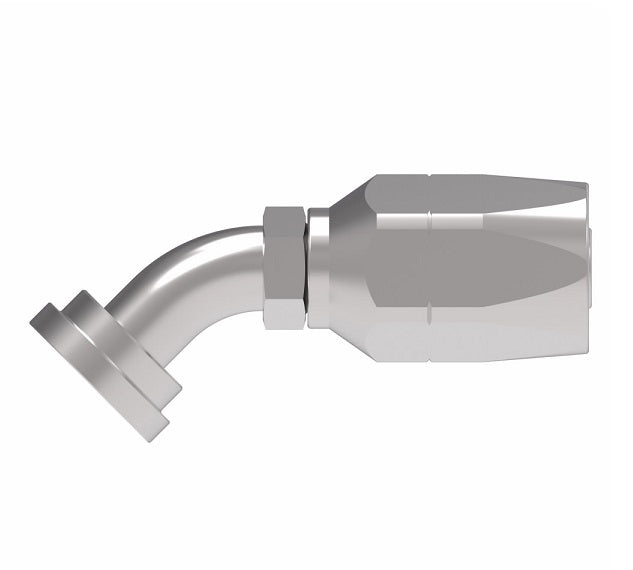

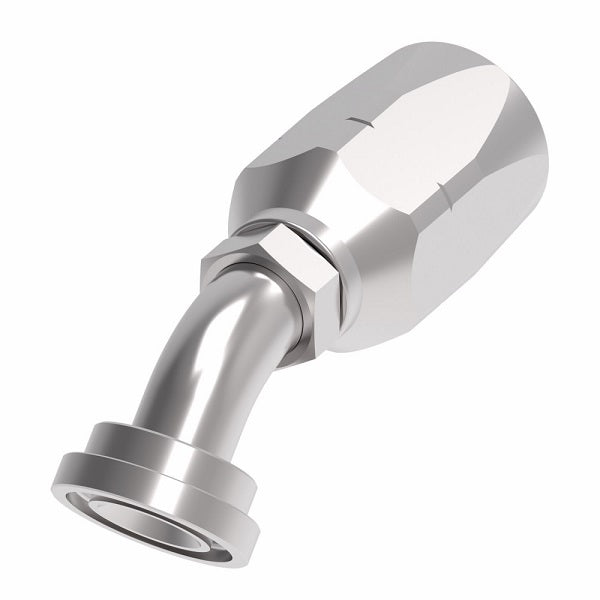

4745-12S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 45° Elbow 100R2 Skive Style Reusable Hose Fitting | -12 Code 61 Split Flange x -12 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Flange Head Diameter |
A | D | EØ | H |
| 4745-8S | -08 | 1.19" | 3.71" | 2.20" | 0.39" | 1.00" |
| 4745-12S | -12 | 1.50" | 4.34" | 2.47" | 0.61" | 1.00" |
| 4745-16-12S | -12 | 1.75" | 4.39" | 2.52" | 0.61" | 1.00" |
| 4745-16S | -16 | 1.75" | 5.09" | 3.04" | 0.82" | 1.12" |
| 4745-20S | -20 | 2.00" | 5.78" | 3.46" | 1.05" | 1.12" |
| 4745-24S | -24 | 2.38" | 5.87" | 3.63" | 1.28" | 1.12" |
| 4745-32S | -32 | 2.81" | 6.63" | 4.19" | 1.75" | 1.25" |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
