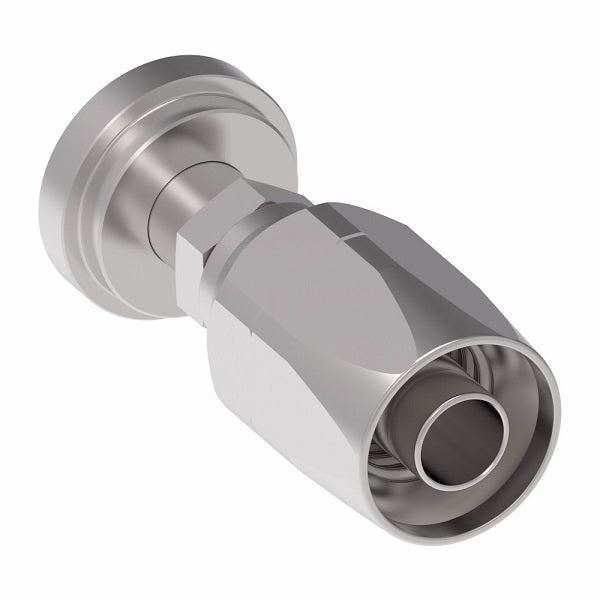

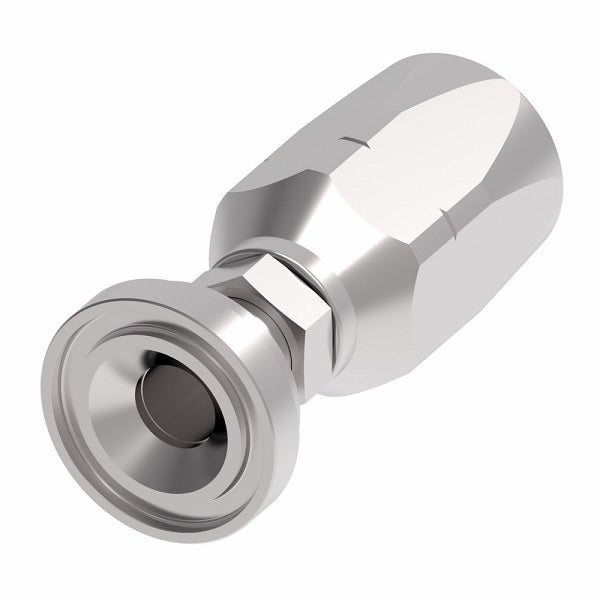

4744-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel
4744-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel
4744-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel

4744-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel

Sale price$667.98

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - Straight

SAE J518

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–14 $627.90
15–29 $567.78
30+ $500.99
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Code 61 Flange
  • 2in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ
4744-8S -08 1.19" 3.03" 1.52" 0.39"
4744-12S -12 1.50" 3.53" 1.66" 0.61"
4744-16-12S -12 1.75" 3.92" 2.05" 0.61"
4744-16S -16 1.75 4.65" 2.59" 0.82"
4744-20-16S -16 2.00" 4.65" 2.60" 0.82"
4744-20S -20 2.00" 5.25" 2.93" 1.05"
4744-24-20S -20 2.38" 5.25" 2.93" 1.05"
4744-24S -24 2.38" 5.51" 3.27" 1.28"
4744-32S -32 2.81" 6.37" 3.93" 1.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
