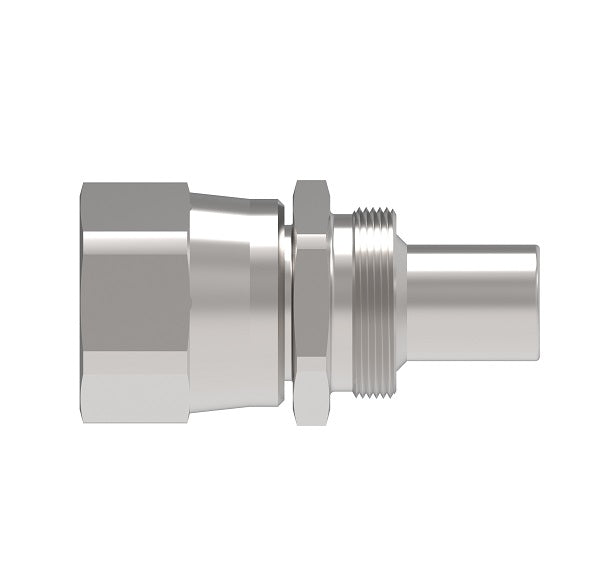

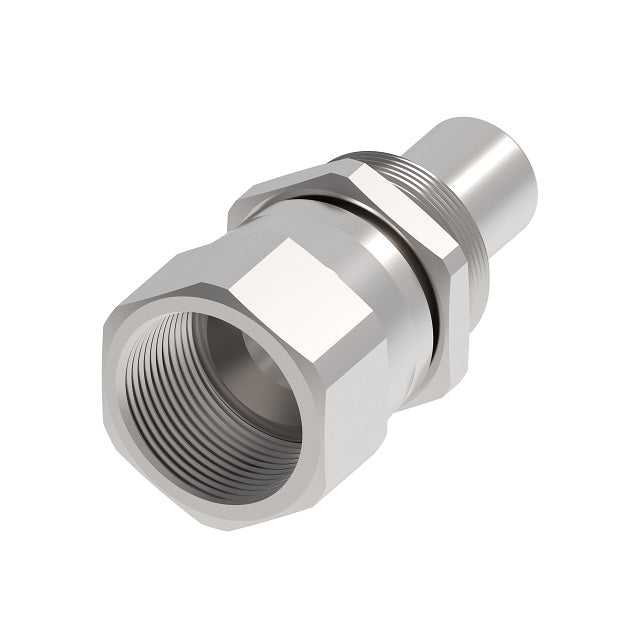

473A-4C Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -04 Female 37° JIC Flare Swivel x -04 Reusable Hose End | Stainless Steel
Aeroquip® by Danfoss
Reusable PTFE Hose Fitting - Nipple Assembly - Female 37° JIC Flare Swivel - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $54.07 |
| 40–79 | $48.89 |
| 80+ | $43.14 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Carbon Steel Part Number |
Stainless Steel Part Number |
Brass & Steel Part Number |
Tube OD Size | Thread | A | B | D | EØ |
| 473A-3S | - | - | - | - | - | - | - | - |
| 473A-4S | 473A-4C | 63-473A-4 | 1/4" | 7/16-20 | 1.58" | 0.76 | 1.13" | 0.16" |
| - | 473A-5C | 63-473A-5 | 5/16" | 1/2-20 | 1.68" | 0.77" | 1.17" | .23" |
| 473A-6S | 473A-6C | 63-473A-6 | 3/8 | 9/16-18 | 1.74" | .82" | 1.22" | .26" |
| 473A-8S | 473A-8C | 63-473A-8 | 1/2" | 3/4-16 | 1.98" | 0.91" | 1.35" | 0.38" |
| 473A-10S | 473A-10C | 63-473A-10 | 5/8" | 7/8-14 | 2.22" | 1.02" | 1.54" | 0.47" |
| 473A-12S | 473A-12C | 63-473A-12 | 3/4" | 1-1/16-12 | 2.33" | 1.10" | 1.67" | 0.59" |
| - | 473A-16C | 63-473A-16 | 1" | 1-5/16-12 | 2.52" | 1.31" | 1.91" | 0.83" |
| - | 473A-20C | 63-473A-20 | 1-1/4" | 1-5/8-12 | 2.92" | 1.63" | 2.27" | 1.06" |
