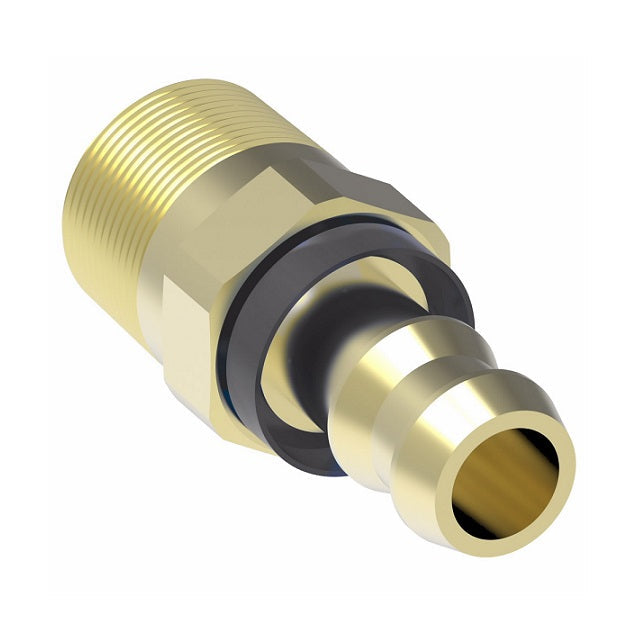

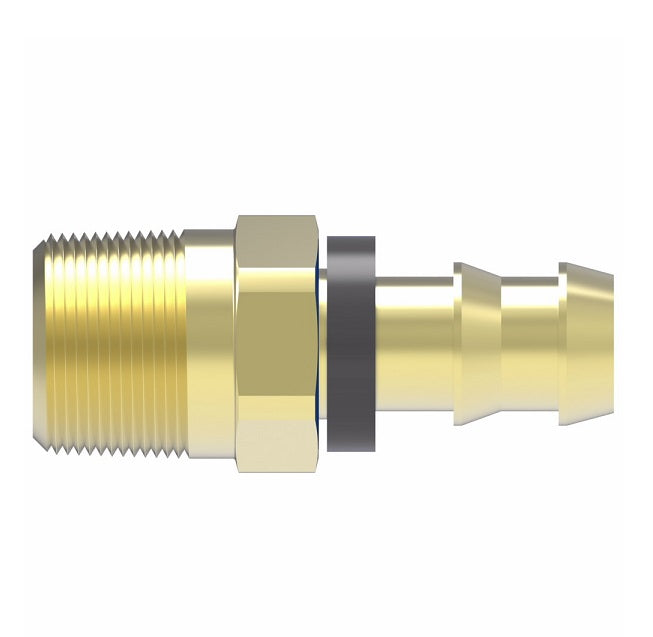

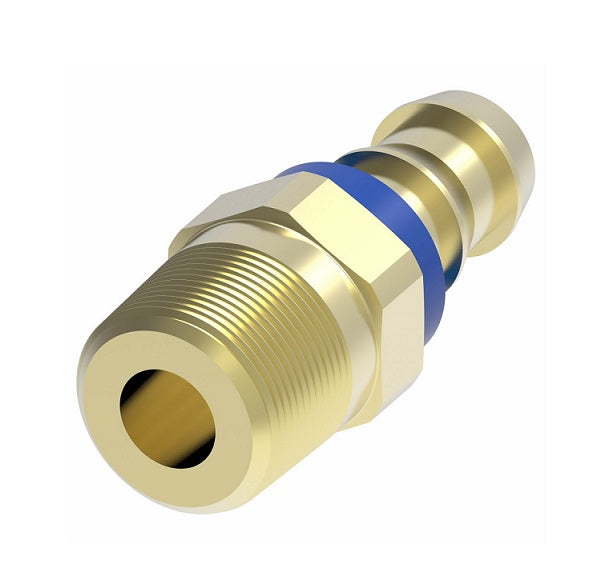

4738-4-4B Aeroquip by Danfoss | Male Pipe Socketless Reusable Hose Fitting | -04 Male Pipe x -04 Push-On Hose Barb | Brass
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||
|---|---|---|---|---|---|
| Brass Part Number |
Hose Size | Thread | A | D | EØ |
| 4738-2-4B | -04 | 1/8-27 | 1.45" | 0.70" | 0.17" |
| 4738-4-4B | -04 | 1/4-18 | 1.63" | 0.88" | 0.17" |
| 4738-4-6B | -06 | 1/4-18 | 1.80" | 0.94" | 0.30" |
| 4738-6-6B | -06 | 3/8-18 | 1.80" | 0.94" | 0.30" |
| 4738-6-4B | -04 | 3/8-18 | - | - | - |
| 4738-6-8B | -08 | 3/8-18 | 1.95" | 0.94" | 0.39" |
| 4738-8-8B | -08 | 1/2-14 | 2.20" | 1.19" | 0.39" |
| 4738-8-10B | -10 | 1/2-14 | 2.73" | 1.19" | 0.48" |
| 4738-12-12B | -12 | 3/4-14 | 2.77" | 1.45" | 0.61" |
| 4738-16-16B | -16 | 1-11-1/2 | 3.08" | 1.45" | 0.85" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Compatible Series:
