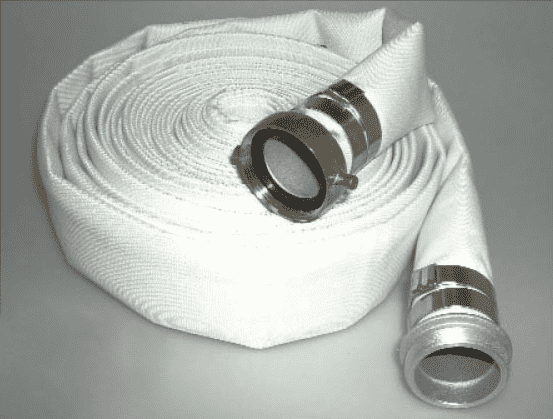

4705-0200-050AB by Jason Industrial | 4705 Series | Municipal Grade Single Jacket (SJ) Mill Discharge Hose Assembly | 230 PSI | 2" ID | M x F AB Pin Lug w/ 5/8" Bands | White | 50ft

4705-0200-050AB by Jason Industrial | 4705 Series | Municipal Grade Single Jacket (SJ) Mill Discharge Hose Assembly | 230 PSI | 2" ID | M x F AB Pin Lug w/ 5/8" Bands | White | 50ft

Sale price$134.47

Jason Industrial Inc. Hose - Water Hose - 4705 Municipal Grade Single Jacket (SJ) Mill Discharge Hose & Assemblies - White

Package Quantity: 50 FT

In stock
Buy More, Save More!
Quantity Price Each
5–19 $126.40
20–59 $114.30
60+ $100.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4705 Series
Color(s):
  • White/Off-White
Internal Diameter:
  • 2in

SPECIFICATIONS

Application: For water discharge service in rental yards, fleet service, municipal washdown and utility dewatering. SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Smooth, Black
Reinforcement: N/A Cover: Single Jacket, 100% Polyester
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: ID SJ Mill WP (PSI) (BAR)
Other Features:
  • HD synthetic cover gives better abrasion resistance
  • Rolls flat for convenient storage
  • Economical, lightweight and flexible
  • Hose is designed for higher working pressures
  • Note: Assembly is rated at 150 PSI.
Part Number I.D. Coupling Bowl Reinforcement Plies Working Pressure Burst Pressure Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR PSI BAR inHg lb./ft. KG/m ft
Uncoupled - Bulk
4705-0150-050 1-1/2" 38.10mm 1.81" 46.04mm N/A 230 PSI 15.86 BAR 345 PSI 23.79 BAR N/A 0.23 lb./ft. 0.34 KG/m 50ft
4705-0150-100 1-1/2" 38.10mm 1.81" 46.04mm N/A 230 PSI 15.86 BAR 345 PSI 23.79 BAR N/A 0.23 lb./ft. 0.34 KG/m 100ft
4705-0200-050 2" 50.80mm 2.31" 58.74mm N/A 230 PSI 15.86 BAR 345 PSI 23.79 BAR N/A 0.28 lb./ft. 0.42 KG/m 50ft
4705-0200-100 2" 50.80mm 2.31" 58.74mm N/A 230 PSI 15.86 BAR 345 PSI 23.79 BAR N/A 0.28 lb./ft. 0.42 KG/m 100ft
4705-0250-050 2-1/2" 63.50mm 2.81" 71.44mm N/A 200 PSI 13.79 BAR 300 PSI 20.68 BAR N/A 0.39 lb./ft. 0.58 KG/m 50ft
4705-0250-100 2-1/2" 63.50mm 2.81" 71.44mm N/A 200 PSI 13.79 BAR 300 PSI 20.68 BAR N/A 0.39 lb./ft. 0.58 KG/m 100ft
4705-0300-050 3" 76.20mm 3.38" 85.73mm N/A 200 PSI 13.79 BAR 300 PSI 20.68 BAR N/A 0.50 lb./ft. 0.74 KG/m 50ft
4705-0300-100 3" 76.20mm 3.38" 85.73mm N/A 200 PSI 13.79 BAR 300 PSI 20.68 BAR N/A 0.50 lb./ft. 0.74 KG/m 100ft
4705-0400-050 4" 101.60mm 4.38" 111.13mm N/A 200 PSI 13.79 BAR 300 PSI 20.68 BAR N/A 0.66 lb./ft. 0.98 KG/m 50ft
4705-0400-100 4" 101.60mm 4.38" 111.13mm N/A 200 PSI 13.79 BAR 300 PSI 20.68 BAR N/A 0.66 lb./ft. 0.98 KG/m 100ft
4705-0600-050 6" 152.40mm 6.38" 161.93mm N/A 200 PSI 13.79 BAR 300 PSI 20.68 BAR N/A 1.00 lb./ft. 1.49 KG/m 50ft
Part Number I.D. Description Max. Working Pressure Weight Standard Length
in. mm PSI BAR lb. KG ft
Cut - Coupled - Coiled - Tied
4705-0150-050AB 1-1/2" 38.10mm CPLD M x F AB Pin Lug with 5/8" Bands 230 PSI 15.86 BAR 8.00 lb./ft. 11.90 KG/m 50ft
4705-0200-050AB 2" 50.80mm CPLD M x F AB Pin Lug with 5/8" Bands 230 PSI 15.86 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4705-0300-050AB 3" 76.20mm CPLD M x F AB Pin Lug with 5/8" Bands 200 PSI 13.79 BAR 22.00 lb./ft. 32.80 KG/m 50ft
4705-0150-050CE 1-1/2" 38.10mm CPLD M x F 1-1/2" AL Cam Lock (C x E) 230 PSI 15.86 BAR 8.00 lb./ft. 11.90 KG/m 50ft
4705-0200-050CE 2" 50.80mm CPLD M x F 2" AL Cam Lock (C x E) 230 PSI 15.86 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4705-0300-050CE 3" 76.20mm CPLD M x F 3" AL Cam Lock (C x E) 200 PSI 13.79 BAR 22.00 lb./ft. 32.80 KG/m 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
