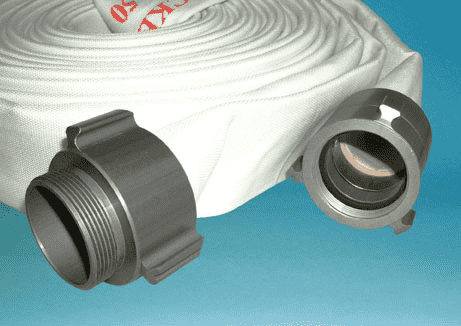

4703-2500-050ERNST by Jason Industrial | 4703 Series | Heavy Duty Double Jacket (DJ) Mill Discharge Hose Assembly | 2-1/2" ID | NST Male x Female Rocker Lug | White | 50ft

4703-2500-050ERNST by Jason Industrial | 4703 Series | Heavy Duty Double Jacket (DJ) Mill Discharge Hose Assembly | 2-1/2" ID | NST Male x Female Rocker Lug | White | 50ft

Sale price$234.89

Jason Industrial Inc. Hose - Water Hose - 4703 Heavy Duty Double Jacket (DJ) Mill Discharge Hose & Assemblies - White

Package Quantity: 50 FT

In stock
Buy More, Save More!
Quantity Price Each
5–19 $220.80
20–59 $199.66
60+ $176.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4703 Series
Color(s):
  • White/Off-White
Internal Diameter:
  • 2.50in

SPECIFICATIONS

Application: Municipal washdown or hydrant-to-truck water supply line. Heavy duty equipment/pump rental, ship/deck washdown. SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Smooth, Black
Reinforcement: N/A Cover: Double Jacket, 100% Polyester
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Service Pressure 300 PSI
Other Features:
  • Double cover gives heavy duty abrasion resistance
  • Rolls flat for easy storage
  • Economical, lightweight and flexible
  • Double cover increases service pressure rating
  • Couplings are internally expanded, aluminum, hardcoated NPS or NST Male x Female rocker lug
  • Note: Assembly is rated at 150 PSI.
Part Number I.D. Coupling Bowl Reinforcement Plies Service Press. Test Press. Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR PSI BAR inHg lb./ft. KG/m ft
Uncoupled - Bulk
4703-1500 1-1/2" 38.10mm 1.94" 46.04mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.26 lb./ft. 0.39 KG/m 50ft
4703-2000 2" 50.80mm 2.50" 58.74mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.26 lb./ft. 0.39 KG/m 50ft
4703-2500 2-1/2" 63.50mm 2.81" 71.44mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.45 lb./ft. 0.67 KG/m 50ft
4703-1501 1-1/2" 38.10mm 1.94" 46.04mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.26 lb./ft. 0.39 KG/m 100ft
4703-2001 2" 50.80mm 2.50" 58.74mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.33 lb./ft. 0.49 KG/m 100ft
4703-2501 2-1/2" 63.50mm 2.81" 71.44mm N/A 300 PSI 41.36 BAR 600 PSI 41.36 BAR N/A 0.45 lb./ft. 0.67 KG/m 100ft
Part Number I.D. Reinforcement Plies Thread Weight Standard Length
in. mm lb. KG ft
Cut - Coupled - Coiled - Tied
4703-1500-050ERNPS 1-1/2" 38.10mm N/A NPS Male x Female Rocker Lug 15.00 lb./ft. 22.32 KG/m 50ft
4703-1500-050ERNST 1-1/2" 38.10mm N/A NST Male x Female Rocker Lug 15.00 lb./ft. 22.32 KG/m 50ft
4703-2000-050ERNPS 2" 50.80mm N/A NPS Male x Female Rocker Lug 20.00 lb./ft. 29.76 KG/m 50ft
4703-2500-050ERNPS 2-1/2" 63.50mm N/A NPS Male x Female Rocker Lug 25.00 lb./ft. 37.20 KG/m 50ft
4703-2500-050ERNST 2-1/2" 63.50mm N/A NST Male x Female Rocker Lug 25.00 lb./ft. 37.20 KG/m 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
