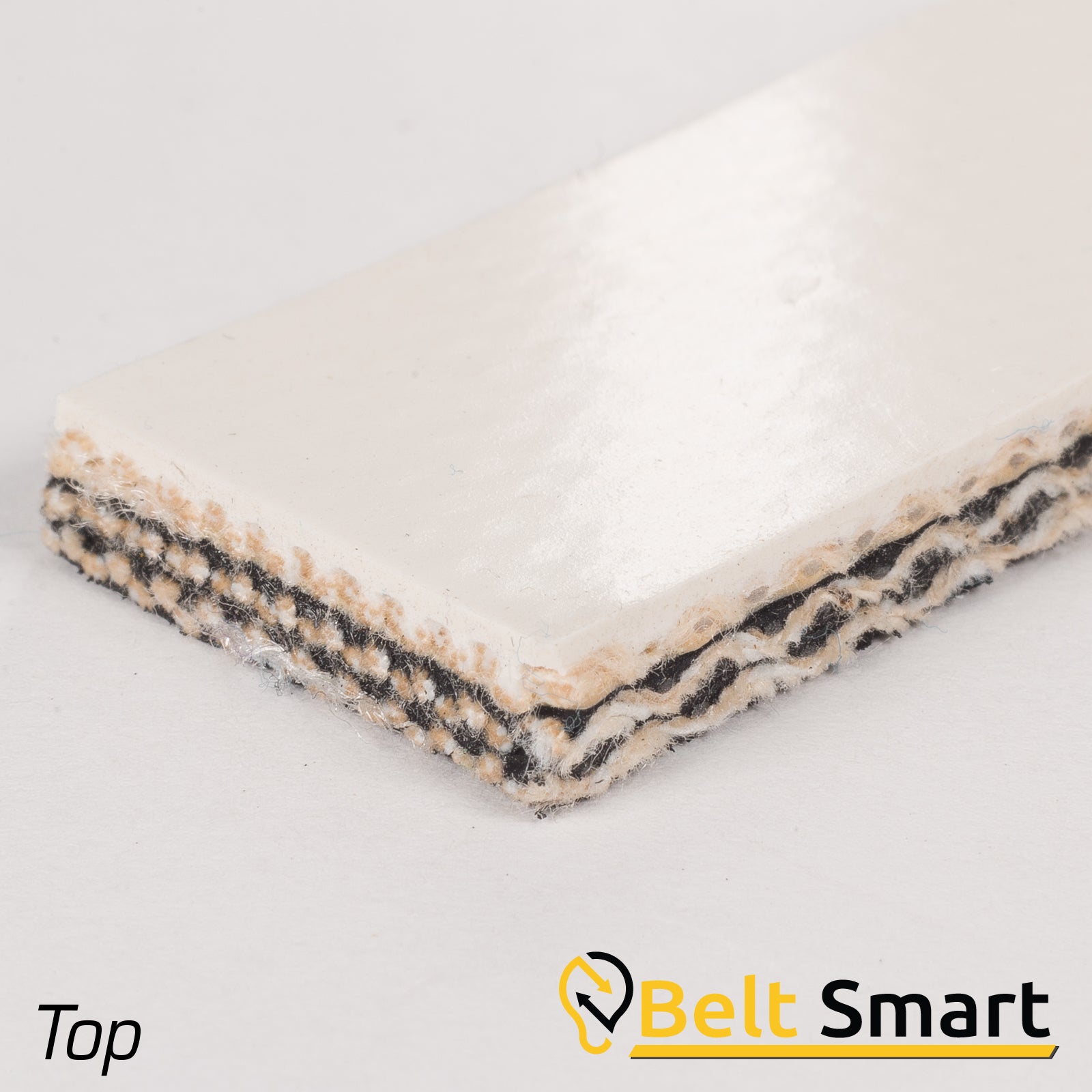

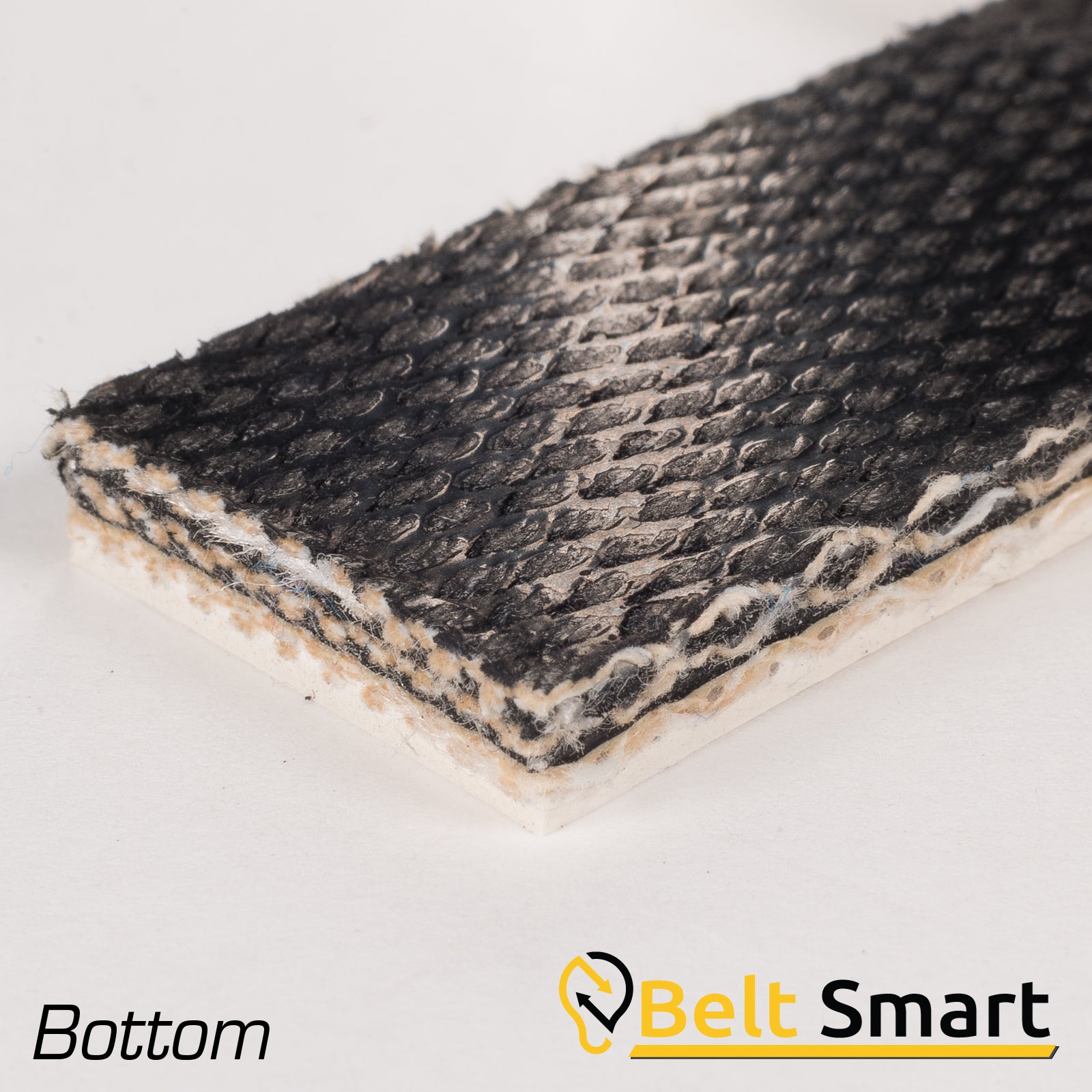

BS046C - #46c Beltservice 3 Ply HSW with 1/32" White Smooth Silicone x FS Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Wet, sticky, or warm products PVC Uncured rubber Tire plants
Features:
Specially designed for applications requiring release of wet, sticky, or warm products like uncured rubber and PVC. These belts are used primarily in the tire and rubber industry.

	3 Ply Red Silicone-Covered HSW Pt No.: 46a	4 Ply Red Silicone-Covered HSW Pt No.: 46b	3 Ply HSW with 1/32" White Smooth Silicone x FS Pt No.: 46c
Thickness	9/64"	3/16"	5/32"
Covers	Silicone Skim x FS		1/32" White Silicone x FS
Carcass	Cotton / HSD		2-28 oz. Cotton 1-35 oz. HSD
Working Tension per Inch Width	90 lbs.	120 lbs.	90 lbs.
Approx. Weight Lbs. Per Inch Width	.071 lbs.	.085 lbs.	.082 lbs.
Min. Pulley Diameter	3"	4"	3"
Temperature Range	Cover: -100 deg. F / 500 deg. F Carcass: -40 deg. F / 250 deg. F
Clipper Lace	#2	#3	#3
Alligator Lace	#15	#25	#25
Flexco Hinged	NR
Alligator Staple	#125	#187	#125

FS = Friction Surface
NR = Not Recommended
