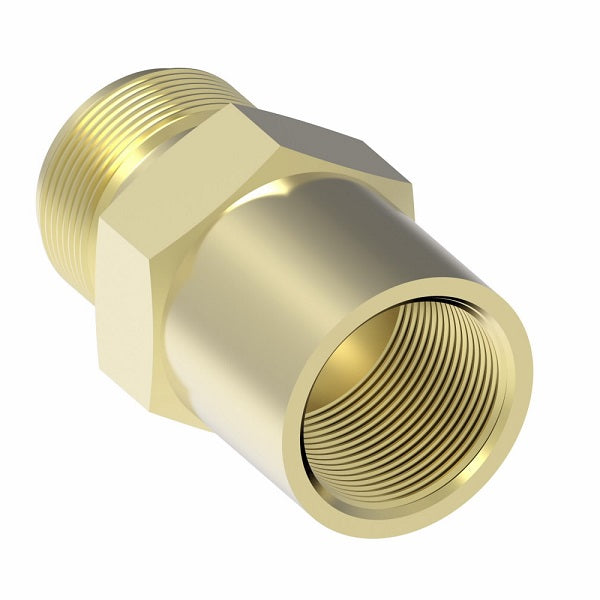

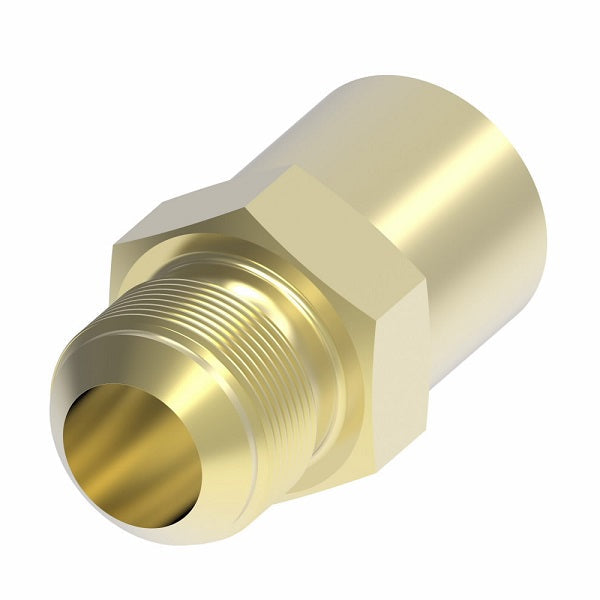

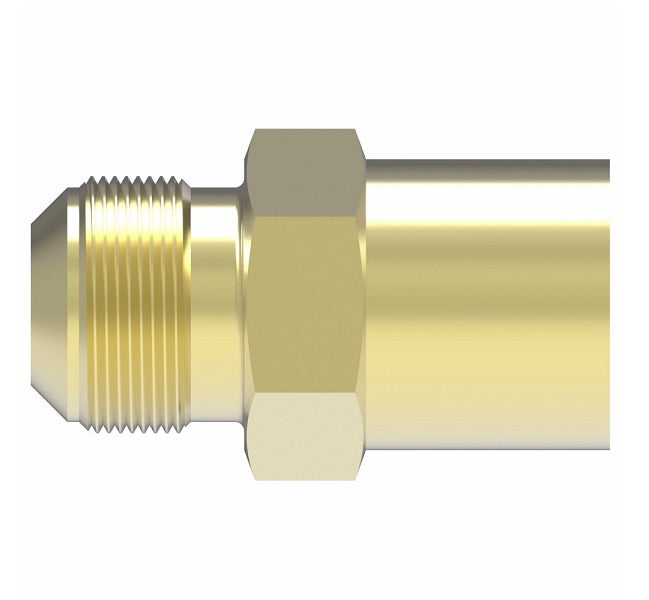

46X4X4 by Danfoss | Female Pipe/SAE 45° Flare Connector |1/4" Male SAE 45° Flare x 1/4" Female NPTF | Brass
46X4X4 by Danfoss | Female Pipe/SAE 45° Flare Connector |1/4" Male SAE 45° Flare x 1/4" Female NPTF | Brass
46X4X4 by Danfoss | Female Pipe/SAE 45° Flare Connector |1/4" Male SAE 45° Flare x 1/4" Female NPTF | Brass

46X4X4 by Danfoss | Female Pipe/SAE 45° Flare Connector |1/4" Male SAE 45° Flare x 1/4" Female NPTF | Brass

Sale price$12.13

Aeroquip® by Danfoss
Female Pipe/SAE 45° Flare Connector
Male SAE 45° Flare x Female NPTF
Straight
Buy More, Save More!
Quantity Price Each
10–39 $11.40
40–79 $10.31
80+ $9.10
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male SAE 45 Flare
  • 1/4in Female NPTF
Material(s):
  • Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010103
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Tube O.D. Female NPTF Hex
C		 D L
46X4 1/4" 1/8" 9/16" 0.188" 1.03"
46X4X4 1/4" 1/4" 11/16" 0.188" 1.25"
46X5 5/16" 1/8" 9/16" 0.219" 1.06"
46X6 3/8" 1/4" 11/16" 0.281" 1.31"
46X6X6 3/8" 3/8" 13/16" 0.281" 1.38"
46X8 1/2" 3/8" 13/16" 0.406" 1.50"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
