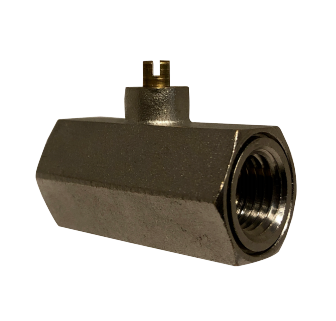

46937LS (46-937LS) by Midland | Mini Ball Valve | Screwdriver Handle (Viton Seals) | 1/2" Female NPT x 1/2" Female NPT | Straight | Chrome Plated Brass
Midland Industries
Mini Ball Valve - Screwdriver Handle (Viton Seals) - Female NPT x Female NPT - Chrome Plated Brass
450 PSI working pressure
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $10.65 |
| 40–79 | $9.63 |
| 80+ | $8.50 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
| Part | Components | Materials | N |
|---|---|---|---|
| 1 | Body | CP Forged Brass | 1 |
| 2 | Ball Seats | PTFE | 2 |
| 3 | Ball | CP Brass | 1 |
| 4 | Ring Unit | Brass | 1 |
| 5 | Stem | Brass | 1 |
| 6 | O-Ring (flag handle) | NBR 80 | 1 |
| 6 | O-Ring (all others) | Fluoroelastomer | 1 |
 |
||||
|---|---|---|---|---|
| Part Number | Size | A | D(Flow) | Weight |
| 46934LS (46-934LS) |
1/8" | 1.57" | 0.24" | 0.21 lbs |
| 46935LS (46-935LS) |
1/4" | 1.57" | 0.31" | 0.20 lbs |
| 46936LS (46-936LS) |
3/8" | 1.57" | 0.28" | 0.22 lbs |
| 46937LS (46-937LS) |
1/2" | 1.77" | 0.35" | 0.24 lbs |
