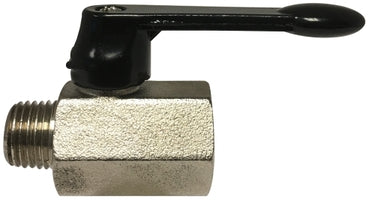

46930L (46-930L) by Midland | Mini Ball Valve | Lever Handle (Viton Seals) | 1/8" Male NPT x 1/8" Female NPT | Straight | Chrome Plated Brass
Midland Industries
Mini Ball Valve - Lever Handle (Viton Seals) - Male NPT x Female NPT - Chrome Plated Brass
450 PSI working pressure
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.81 |
| 40–79 | $10.68 |
| 80+ | $9.42 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
| Part | Components | Materials | N |
|---|---|---|---|
| 1 | Body | CP Forged Brass | 1 |
| 2 | Ball Seats | PTFE | 2 |
| 3 | Ball | CP Brass | 1 |
| 4 | Ring Unit | Brass | 1 |
| 5 | Stem | Brass | 1 |
| 6 | O-Ring (flag handle) | NBR 80 | 1 |
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Size | A | D(Flow) | F | G | Weight |
| 46930L (46-930L) |
1/8" | 1.57" | 0.24" | 1.99" | 1.50" | 0.17 |
| 46931L (46-931L) |
1/4" | 1.57" | 0.31" | 1.99" | 1.50" | 0.15 |
| 46932L (46-932L) |
3/8" | 1.57" | 0.28" | 1.99" | 1.50" | 0.21 |
| 46933L (46-933L) |
1/2" | 1.77" | 0.35" | 1.99" | 1.59" | 0.24 |
