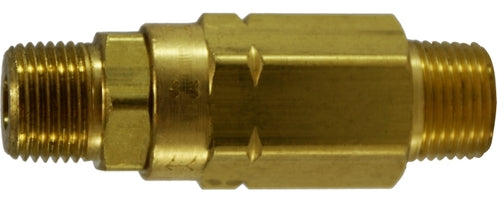

46519 (46-519) by Midland | High Pressure Check Valve (3000 PSI) | 3/8" Male Pipe x 3/8" Male Pipe | Straight | Brass

46519 (46-519) by Midland | High Pressure Check Valve (3000 PSI) | 3/8" Male Pipe x 3/8" Male Pipe | Straight | Brass

Sale price$49.66
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Operates in any position.
  • Standard Cracking Pressure: 1 PSI
  • Maximum Operating Temperatures: 180° F using Buna-N seals.
  • Buna-N seals standard.
  • Guided 316 stainless steel ball and spring.
  • Fixed ringed seat prevents extrusion of seal.
  • Opening diameter .28"
  • Approximate CV 1.2
  • Water G.P.M. @ 10 PSI is 4.0
Part Number Male Pipe x Male Pipe
46515
(46-515)		 1/4" x 1/4"
46519
(46-519)		 3/8" x 3/8"

Dimension Data can change without notice.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Male NPT
  • 3/8in Male NPT
  • Some Ends Match
Material(s):
  • Brass

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
