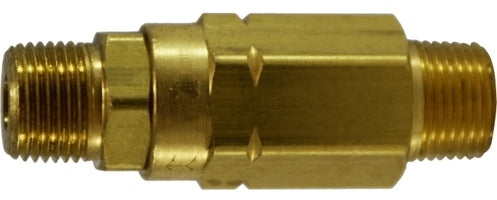

46515 (46-515) by Midland | High Pressure Check Valve (3000 PSI) | 1/4" Male Pipe x 1/4" Male Pipe | Straight | Brass

46515 (46-515) by Midland | High Pressure Check Valve (3000 PSI) | 1/4" Male Pipe x 1/4" Male Pipe | Straight | Brass

Sale price$34.69

Midland Industries
Brass Fitting - High Pressure Check Valve - Male Pipe x Male Pipe - Brass

Max Operating Pressure: 3000 PSI

Good for air applications.
Buy More, Save More!
Quantity Price Each
10–39 $32.61
40–79 $29.49
80+ $26.02
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Male NPT
  • 1/4in Male NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Operates in any position.
  • Standard Cracking Pressure: 1 PSI
  • Maximum Operating Temperatures: 180° F using Buna-N seals.
  • Buna-N seals standard.
  • Guided 316 stainless steel ball and spring.
  • Fixed ringed seat prevents extrusion of seal.
  • Opening diameter .28"
  • Approximate CV 1.2
  • Water G.P.M. @ 10 PSI is 4.0
Part Number Male Pipe x Male Pipe
46515
(46-515)		 1/4" x 1/4"
46519
(46-519)		 3/8" x 3/8"

Dimension Data can change without notice.
