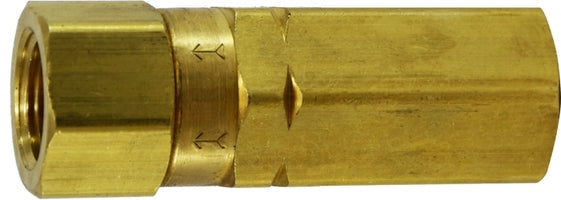

46513 "46-513" by Midland | High Pressure Check Valve | 1/4" Female Pipe x 1/4" Female Pipe | 3000 PSI | Brass

46513 "46-513" by Midland | High Pressure Check Valve | 1/4" Female Pipe x 1/4" Female Pipe | 3000 PSI | Brass

Sale price$47.65

Midland Industries
Brass Fitting - High Pressure Check Valve - Female Pipe x Female Pipe - Brass

Max Operating Pressure: 3000 PSI

Good for air applications.
Buy More, Save More!
Quantity Price Each
10–39 $44.79
40–79 $40.50
80+ $35.74
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Operates in any position.
  • Standard Cracking Pressure: 1 PSI
  • Maximum Operating Temperatures: 180° F using Buna-N seals.
  • Buna-N seals standard.
  • Guided 316 stainless steel ball and spring.
  • Fixed ringed seat prevents extrusion of seal.
  • Opening diameter .28"
  • Approximate CV 1.2
  • Water G.P.M. @ 10 PSI is 4.0
Part Number Female Pipe x Female Pipe
46513
(46-513)		 1/4" x 1/4"
46517
(46-517)		 3/8" x 3/8"

Dimension Data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
