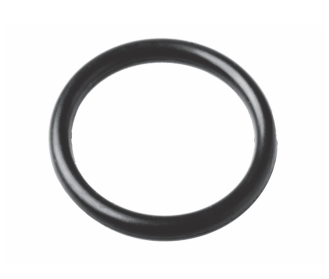

4629x16 by Couplamatic | VARI-CRIMP Coupling | 1-7/16x12 Thread x 1" Tube OD O-Ring For O-Ring Face Seal | ORF | Straight | Trivalent Zinc Plating

Minimum Order Quantity: 10 Units

$0.93

In stock

Buy more, save moreDiscounts applied in cart/checkout.

Quantity:

Vari-Crimp — Universal Crimp

4629x4 Vari-Crimp — O-Ring Face Seal (ORF), Straight

4629x4 is the O-Ring Face Seal (ORF), Straight configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

What are the main product features?

The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.

Which sizes are available?

Part Number	Thread Size	Tube OD
4629x4	9/16x18	1/4"
4629x6	11/16x16	3/8"
4629x8	13/16x16	1/2"
4629x10	1x14	5/8"
4629x12	1-3/16x12	3/4"
4629x16	1-7/16x12	1"
4629x20	1-11/16x12	1-1/4"

Additional Product Data:

Series:

VARI-CRIMP Series

Compatible Series:

56MB-1 Series
57MB-2 Series
56MB-2 Series
HPI Series
HPIII Series
2SN Series
R16 Series
DH16 Series
DHEX16 Series
R17 Series
R17R Series
WDH17 Series
3319A Series
