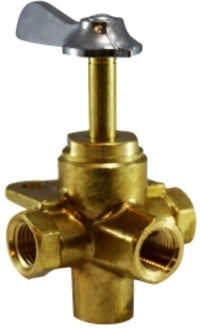

46260 (46-260) by Midland | 2-3/8" Long Stem M-115-MID 4 Way Valve | Bottom Outlet | 1/4" Female Pipe | Cross | Brass

46260 (46-260) by Midland | 2-3/8" Long Stem M-115-MID 4 Way Valve | Bottom Outlet | 1/4" Female Pipe | Cross | Brass

Sale price$30.89

Midland Industries
Brass Fitting - Specialty Valve Fitting - 2-3/8" Long Stem M-115-MID 4 Way Valve - Bottom Outlet - Brass
Buy More, Save More!
Quantity Price Each
10–39 $29.04
40–79 $26.26
80+ $23.17
Discounts applied in cart/checkout.

Product Data:

Shape:

Cross

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
  • 1/4in Female NPT
  • 1/4in Female NPT
  • 2-3/8in Tube Stem
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Side Outlet.
  • Bracket Mounting.
  • O-Ring Sealed.
  • 4-way celcon roter standard.
Part Number A-B-C-D Female Pipe Thread Length of Stem
46260
(46-260)		 1/4" 2-3/8"

Openings:
Handle Pointer over A..........Valve Open A-D
Handle Pointer over C..........Valve Open C-D
Handle Pointer over B..........Valve Open B-D
Handle Pointer over Bracket..........Valve "OFF"

Dimension Data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
