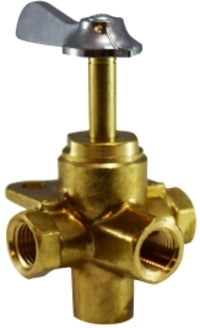

46257 (46-257) by Midland | Less Click 4 Way Ball Valve | Bottom Outlet | 1/4" Female Pipe | Cross | Brass

46257 (46-257) by Midland | Less Click 4 Way Ball Valve | Bottom Outlet | 1/4" Female Pipe | Cross | Brass

Sale price$39.60
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Side Outlet.
  • Bracket Mounting.
  • O-Ring Sealed.
  • 4-way celcon roter standard.
Part Number A-B-C-D Female Pipe Thread Length of Stem
46257
(46-257)		 1/4" 1-3/8"

Openings:
Handle Pointer over A..........Valve Open A-D
Handle Pointer over C..........Valve Open C-D
Handle Pointer over B..........Valve Open B-D
Handle Pointer over Bracket..........Valve "OFF"

Dimension Data can change without notice.

Additional Product Data:

Shape:

Cross

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
  • 1/4in Female NPT
  • 1/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
