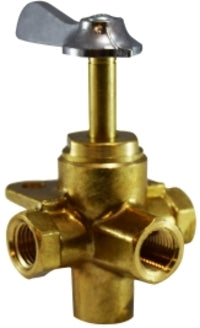

46255 by Midland | M-114-MID with Click 360° 4 Way Ball Valve | Bottom Outlet | 1/4" Female Pipe | Brass

46255 by Midland | M-114-MID with Click 360° 4 Way Ball Valve | Bottom Outlet | 1/4" Female Pipe | Brass

Sale price$34.70

Midland Industries
Brass Fitting - Specialty Valve Fitting - M-114-MID with Click 360° 4 Way Ball Valve - Bottom Outlet - Brass
Buy More, Save More!
Quantity Price Each
10–39 $32.62
40–79 $29.50
80+ $26.03
Discounts applied in cart/checkout.

Product Data:

Shape:

Cross

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
  • 1/4in Female NPT
  • 1/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Side Outlet.
  • Bracket Mounting.
  • O-Ring Sealed.
  • 4-way celcon roter standard.
Part Number A-B-C-D Female Pipe Thread Length of Stem
46255
(46-255)		 1/4" 1-3/8"
46256
(46-256)		 3/8" 1-3/8"

Openings:
Handle Pointer over A..........Valve Open A-D
Handle Pointer over C..........Valve Open C-D
Handle Pointer over B..........Valve Open B-D
Handle Pointer over Bracket..........Valve "OFF"

Dimension Data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
