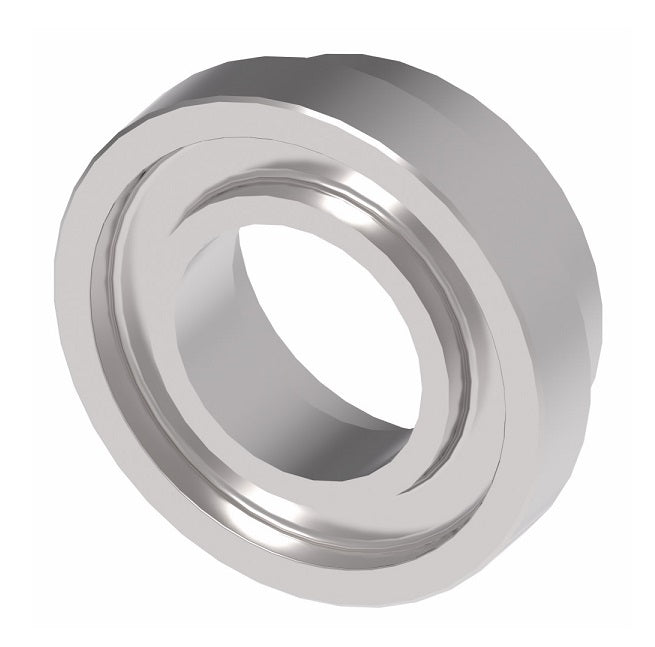

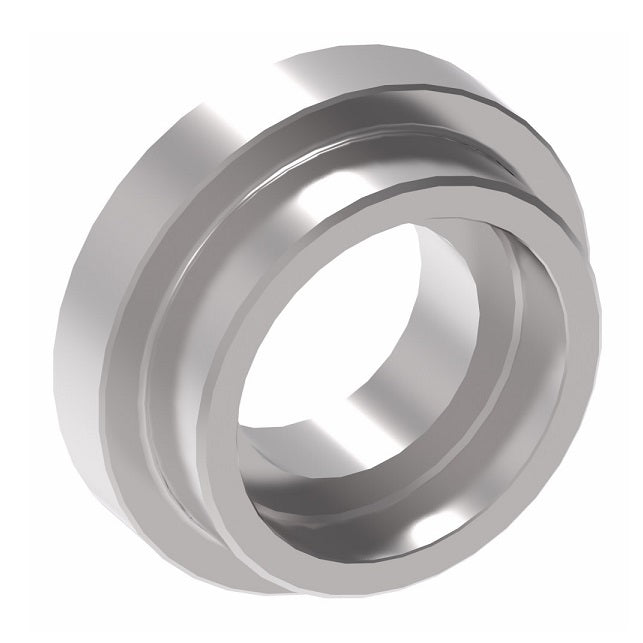

4624-24S Aeroquip by Danfoss | Braze/Solid Flanged Head SAE Code 61 Adapter | Standard Pressure Series | -24 Braze End x -24 Code 61 Flange | Steel
Aeroquip® by Danfoss
Braze/Solid Flanged Head SAE Code 61 Adapter
Braze End x Code 61 Flange
Standard Pressure Series
Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.00 |
| 40–79 | $15.37 |
| 80+ | $13.56 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||
|---|---|---|---|---|
| Part Number | Split Flange Size | Tube O.D. | A | B |
| 4624-8S | 1/2" | 0.50" | 0.25" | 0.50" |
| 4624-12S | 3/4" | 0.75" | 0.31" | 0.75" |
| 4624-12-8S | 3/4" | 0.50" | 0.25" | 0.50" |
| 4624-12-16S | 3/4" | 1.00" | 0.31" | 1.00" |
| 4624-16S | 1" | 1.00" | 0.31" | 1.00" |
| 4624-16-12S | 1" | 0.75" | 0.31" | 0.75" |
| 4624-16-20S | 1" | 1.25" | 0.31" | 1.25" |
| 4624-20S | 1-1/4" | 1.25" | 0.31" | 1.25" |
| 4624-20-12S | 1-1/4" | 0.75" | 0.31" | 0.75" |
| 4624-20-16S | 1-1/4" | 1.00" | 0.31" | 1.00" |
| 4624-20-24S | 1-1/4" | 1.50" | 0.31" | 1.50" |
| 4624-24S | 1-1/2" | 1.50" | 0.38" | 1.50" |
| 4624-24-16S | 1-1/2" | 1.00" | 0.38" | 1.00" |
| 4624-24-20S | 1-1/2" | 1.25" | 0.31" | 1.25" |
| 4624-32S | 2" | 2.00" | 0.38" | 2.00" |
| 4624-32-16S | 2" | 1.00" | 0.28" | 1.00" |
| 4624-32-20S | 2" | 1.25" | 0.38" | 1.25" |
| 4624-32-24S | 2" | 1.50" | 0.38" | 1.50" |
| 4624-40S | - | - | - | - |
| 4624-40-32S | 2-1/2" | 2.00" | 0.44" | 2.00" |
