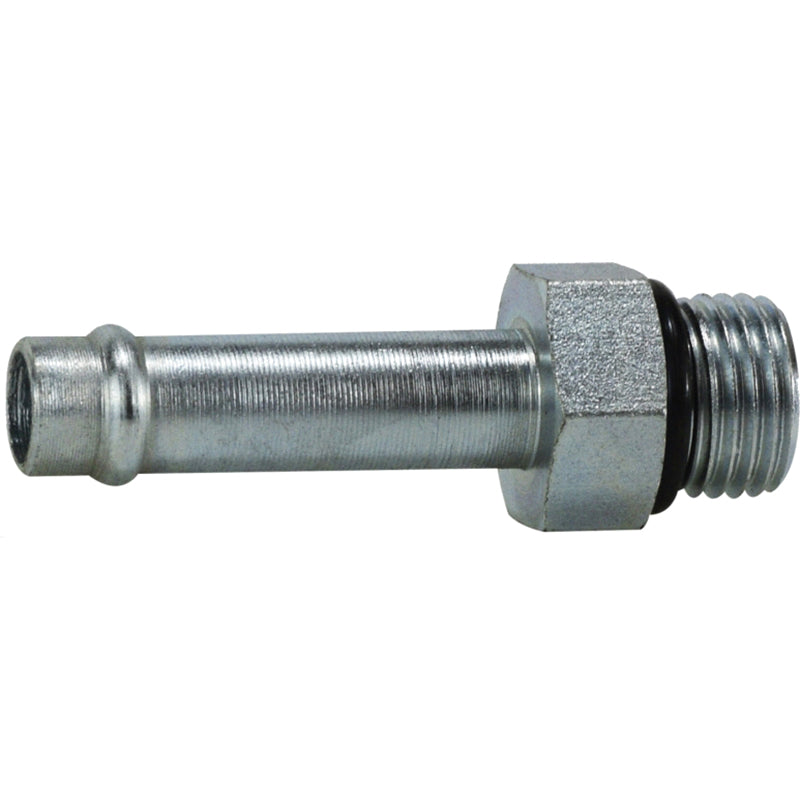

4604O16 by Midland | Hydraulic Beaded Hose Fitting | 1" Hose Size x 1" Male O-Ring Boss | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Part Number | Hose Size | Male O-Ring Boss Size | Male O-Ring Boss Thread |
|---|---|---|---|
| 4604O4 | 1/4" | 1/4" | 7/16-20 |
| 4604O6 | 3/8" | 3/8" | 9/16-18 |
| 4604O610 | 3/8" | 5/8" | 7/8-14 |
| 4604O8 | 1/2" | 1/2" | 3/4-16 |
| 4604O86 | 1/2" | 3/8" | 9/16-18 |
| 4604O108 | 5/8" | 1/2" | 3/4-16 |
| 4604O12 | 3/4" | 3/4" | 1-1/16-12 |
| 4604O1612 | 1" | 3/4" | 1-1/16-12 |
| 4604O16 | 1" | 1" | 1-5/16-12 |
| 4604O2016 | 1-1/4" | 1" | 1-5/16-12 |
| 4604O24 | 1-1/2" | 1-1/2" | 1-7/8-12 |
| 4604O32 | 2" | 2" | 2-1/2-12 |
| 4604O3224 | 2" | 1-1/2" | 1-7/8-12 |
Additional Product Data:
Ends Configuration:
Material(s):
