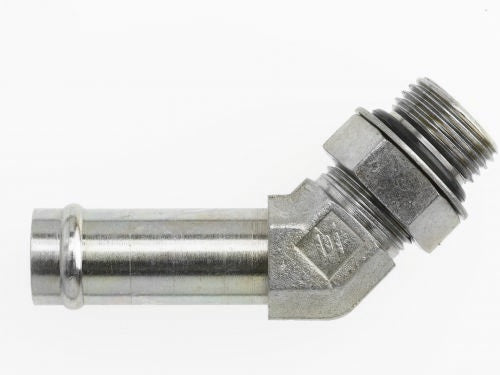

4603-16-12-NWO-FG by Brennan Inc. | -16 Hose Barb x -12 Male Adjustable O-Ring Boss | 45° Elbow | Forged Steel
Brennan Inc.
Tube Fittings & Adapters: 4603-NWO - Hose Barb x Male Adjustable O-Ring Boss 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $32.38 |
| 40–79 | $29.28 |
| 80+ | $25.84 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | B1 Tube O.D. | B2 AORB | B1 Drill | B2 Drill | L Length | M Length | C Hex | Y Flats |
| 4603-04-04-NWO-FG | Forged Steel | 1/4" | 7/16-20" | 0.188" | 0.172" | 1.681" | 1.047" | 0.563" | 0.438" |
| 4603-06-06-NWO-FG | Forged Steel | 3/8" | 9/16-18" | 0.297" | 0.297" | 1.681" | 1.146" | 0.688" | 0.562" |
| 4603-08-06-NWO-FG | Forged Steel | 1/2" | 9/16-18" | 0.406" | 0.297" | 1.760" | 1.300" | 0.688" | 0.750" |
| 4603-08-08-NWO-FG | Forged Steel | 1/2" | 3/4-16" | 0.406" | 0.391" | 1.625" | 1.296" | 0.875" | 0.812" |
| 4603-10-08-NWO-FG | Forged Steel | 5/8" | 3/4-16" | 0.500" | 0.391" | 1.820" | 1.300" | 0.875" | 0.750" |
| 4603-10-10-NWO-FG | Forged Steel | 5/8" | 7/8-14" | 0.500" | 0.484" | 1.850" | 1.520" | 1.000" | 0.875" |
| 4603-10-12-NWO-FG | Forged Steel | 5/8" | 1-1/16-12" | 0.500" | 0.609" | 1.894" | 1.724" | 1.250" | 1.062" |
| 4603-12-08-NWO-FG | Forged Steel | 3/4" | 3/4-16" | 0.625" | 0.391" | 1.846" | 1.358" | 0.875" | 0.875" |
| 4603-12-10-NWO-FG | Forged Steel | 3/4" | 7/8-14" | 0.626" | 0.484" | 1.650" | 1.530" | 1.000" | 1.062" |
| 4603-12-12-NWO-FG | Forged Steel | 3/4" | 1-1/16-12" | 0.626" | 0.609" | 1.894" | 1.724" | 1.250" | 1.062" |
| 4603-12-16-NWO-FG | Forged Steel | 3/4" | 1-5/16-20" | 0.625" | 0.844" | 1.957" | 1.854" | 1.500" | 1.312" |
| 4603-16-12-NWO-FG | Forged Steel | 1" | 1-1/16-12" | 0.843" | 0.609" | 1.700" | 1.730" | 1.250" | 1.312" |
| 4603-16-16-NWO-FG | Forged Steel | 1" | 1-5/16-12" | 0.844" | 0.844" | 1.960" | 1.850" | 1.500" | 1.312" |
| 4603-16-20-NWO-FG | Forged Steel | 1" | 1-5/8-12" | 0.844" | 1.078" | 2.050" | 1.894" | 1.875" | 1.625" |
| 4603-20-12-NWO-FG | Forged Steel | 1-1/4" | 1-1/16-12" | 1.094" | 0.609" | 2.059" | 1.840" | 1.250" | 1.625" |
| 4603-20-16-NWO-FG | Forged Steel | 1-1/4" | 1-5/16-12" | 1.094" | 0.844" | 2.060" | 1.840" | 1.500" | 1.625" |
| 4603-20-20-NWO-FG | Forged Steel | 1-1/4" | 1-5/8-12" | 1.094" | 1.078" | 2.059" | 1.894" | 1.875" | 1.625" |
| 4603-24-16-NWO-FG | Forged Steel | 1-1/2" | 1-5/16-12" | 1.343" | 0.844" | 1.988" | 1.909" | 1.500" | 1.875" |
| 4603-24-20-NWO-FG | Forged Steel | 1-1/2" | 1-5/8-12" | 1.343" | 1.078" | 1.990" | 1.894" | 1.875" | 1.875" |
| 4603-24-24-NWO-FG | Forged Steel | 1-1/2" | 1-7/8-12" | 1.343" | 1.312" | 2.060" | 1.909" | 2.125" | 1.875" |
| 4603-32-32-NWO-FG | Forged Steel | 2" | 2-1/2-12" | 1.843" | 1.781" | 2.237" | 1.860" | 2.750" | 2.500" |
