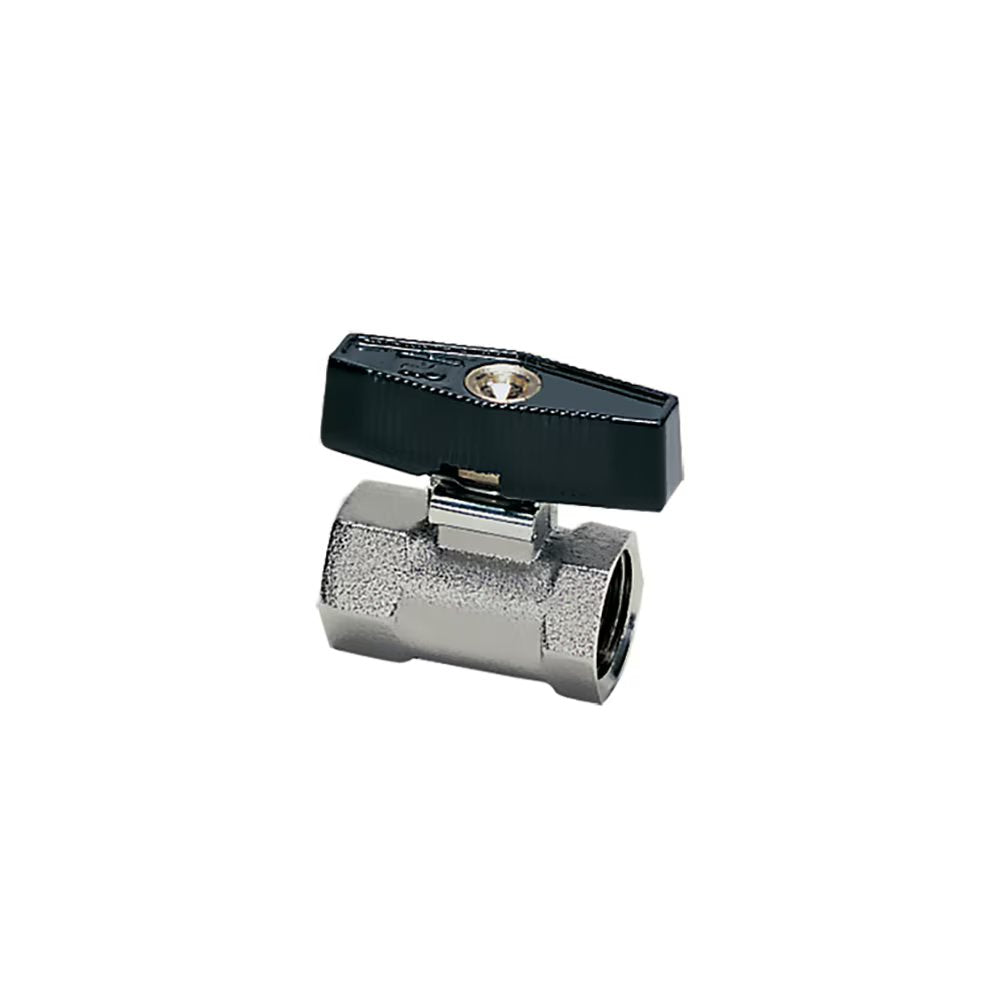

4602 10 21 by Parker | Butterfly Shut-Off Valve | 1/2" Female BSPP Thread | 24 mm Hex | 54 mm Length | Straight | Nickel-Plated Brass | Pack of 10

4602 10 21 by Parker | Butterfly Shut-Off Valve | 1/2" Female BSPP Thread | 24 mm Hex | 54 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Sale price$975.92

by Parker Hannifin
Needle Valve Series:4602 2/2 Butterfly Shut-Off Valve, Female BSPP Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $917.36
15–29 $829.53
30+ $731.94
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4602 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female BSPP
  • 1/2in Female BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air, abrasive fluids
  • Working Pressure: 0 to 16 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Compatible with abrasive fluids (including solid particles)
  • Fluid flow direction marked (uni-directional)
  • Small size
  • Simple and efficient design
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem: Brass
  • Flap: Stainless Steel
  • Body: Nickel-plated shot blasted brass
  • Lever: Zamak, black epoxy paint
  • O-ring: NBR
Part Number Diameter Nominal (DN) C E F H L M Kg
4602 06 13 6 mm 1/4" 9 mm 17 mm 35 mm 34 mm 54 mm .102 Kg
4602 07 17 7 mm 3/8" 11 mm 22 mm 35 mm 39 mm 54 mm .136 Kg
4602 10 21 10 mm 1/2" 12 mm 24 mm 37 mm 42 mm 54 mm .140 Kg
