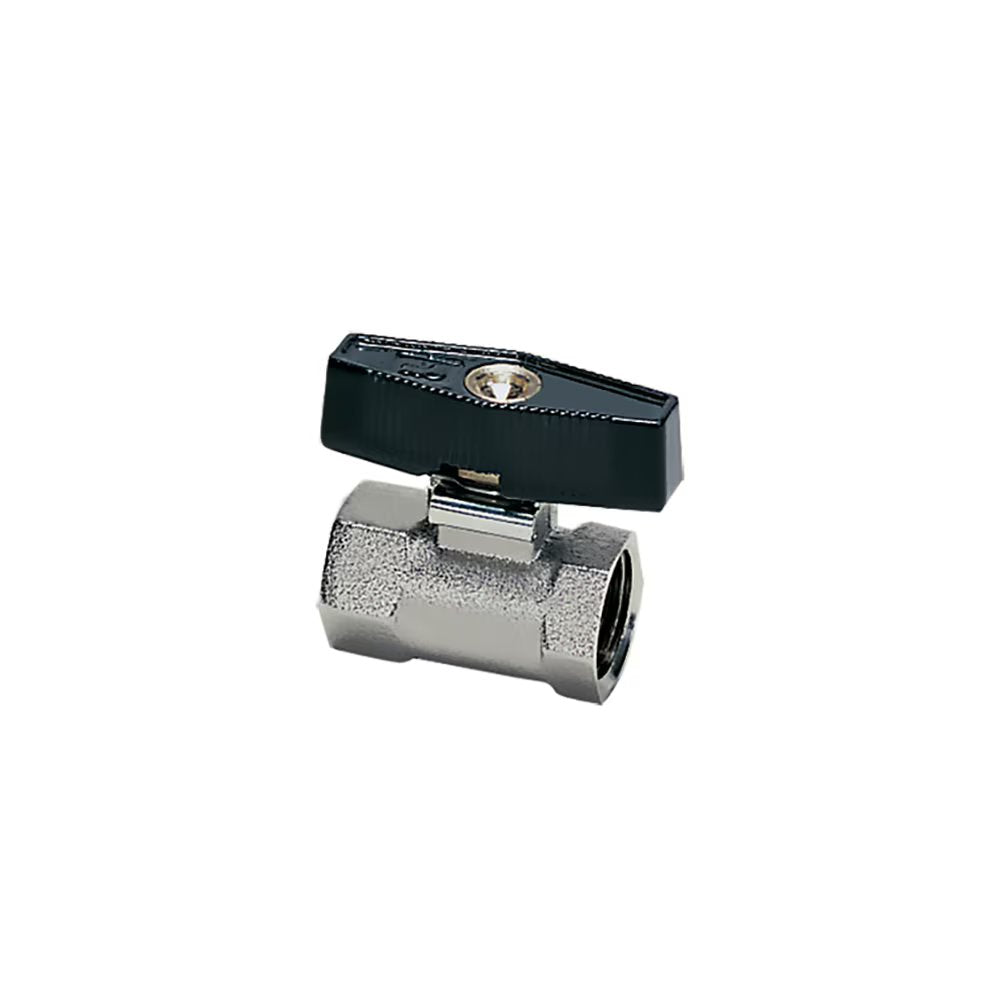

4602 07 17 by Parker | Butterfly Shut-Off Valve | 3/8" Female BSPP Thread | 22 mm Hex | 54 mm Length | Straight | Nickel-Plated Brass

$86.97

by Parker Hannifin
Needle Valve Series:4602 2/2 Butterfly Shut-Off Valve, Female BSPP Thread

Quantity:

Buy More, Save More!
Quantity	Price Each
20–29	$81.75
30–59	$73.92
60+	$65.23

Discounts applied in cart/checkout.

Product Data:

Series:

4602 Series

Shape:

Straight

Ends Configuration:

3/8in Female BSPP
3/8in Female BSPP
Some Ends Match

Technical Characteristics:	Compatible Fluids: Compressed air, abrasive fluids Working Pressure: 0 to 16 bar Working Temperature: -20°C to +80°C
Advantages:	Compatible with abrasive fluids (including solid particles) Fluid flow direction marked (uni-directional) Small size Simple and efficient design
Regulations:	PED RoHS REACH
Component Materials:	Stem: Brass Flap: Stainless Steel Body: Nickel-plated shot blasted brass Lever: Zamak, black epoxy paint O-ring: NBR


Part Number	Diameter Nominal (DN)	C	E	F	H	L	M	Kg
4602 06 13	6 mm	1/4"	9 mm	17 mm	35 mm	34 mm	54 mm	.102 Kg
4602 07 17	7 mm	3/8"	11 mm	22 mm	35 mm	39 mm	54 mm	.136 Kg
4602 10 21	10 mm	1/2"	12 mm	24 mm	37 mm	42 mm	54 mm	.140 Kg
