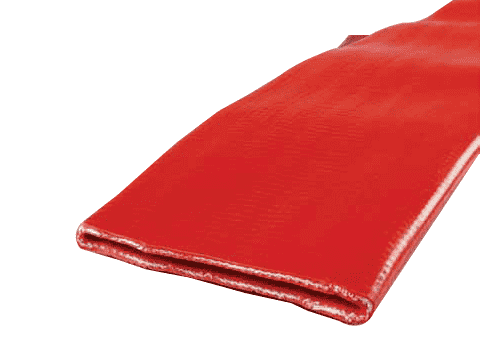

4515-2500 by Jason Industrial | 4515 Series | Water Discharge Hose | Heavy Duty | 125 PSI | 2-1/2" ID | 0.098" Wall Thickness | Red | PVC | 300ft

4515-2500 by Jason Industrial | 4515 Series | Water Discharge Hose | Heavy Duty | 125 PSI | 2-1/2" ID | 0.098" Wall Thickness | Red | PVC | 300ft

Sale price$691.75

Jason Industrial Inc. Hose - Water Hose - 4515 Red PVC Water Discharge Hose - Heavy Duty

Package Quantity: 300 FT

Buy More, Save More!
Quantity Price Each
5–14 $650.25
15–29 $587.99
30+ $553.40
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For water discharge in construction, agriculture and heavy duty equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: Bright Red, PVC
Reinforcement: Knitted Polyester Yarn Cover: Bright Red, PVC
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • High WP for heavy duty applications
  • Rolls flat for convenient storage
  • Homogeneous construction eliminates tube and cover separation
  • Maximum bonding is due to the tube and cover being extruded simultaneously
Part Number I.D. Wall Thickness Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m ft
Uncoupled
4515-1500 1-1/2" 38.10mm 0.090" 2.29mm Knitted 140 PSI 9.65 BAR N/A 0.22 lb./ft. 0.32 KG/m 300ft
4515-2000 2" 50.80mm 0.090" 2.29mm Knitted 130 PSI 8.96 BAR N/A 0.26 lb./ft. 0.38 KG/m 300ft
4515-2500 2-1/2" 36.50mm 0.098" 2.49mm Knitted 125 PSI 8.61 BAR N/A 0.30 lb./ft. 0.44 KG/m 300ft
4515-3000 3" 76.20mm 0.098" 2.49mm Knitted 125 PSI 8.61 BAR N/A 0.40 lb./ft. 0.59 KG/m 300ft
4515-4000 4" 101.60mm 0.110" 2.79mm Knitted 125 PSI 8.61 BAR N/A 0.62 lb./ft. 0.91 KG/m 300ft
4515-6000 6" 152.40mm 0.111" 2.82mm Knitted 115 PSI 7.92 BAR N/A 1.18 lb./ft. 1.75 KG/m 300ft
4515-8000 8" 203.20mm 0.111" 2.82mm Knitted 70 PSI 4.82 BAR N/A 1.23 lb./ft. 1.83 KG/m 300ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4515 Series
Color(s):
  • Red
Internal Diameter:
  • 2.50in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
