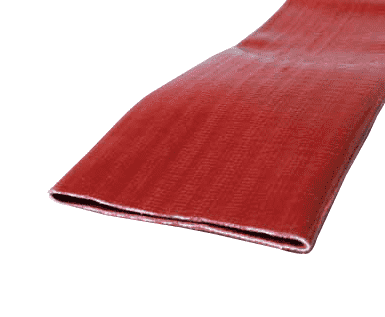

4504-3000 by Jason Industrial | 4504 Series | Water Discharge Hose | 100 PSI | 3" ID | 0.079" Wall Thickness | Wine Red | PVC | 300ft

4504-3000 by Jason Industrial | 4504 Series | Water Discharge Hose | 100 PSI | 3" ID | 0.079" Wall Thickness | Wine Red | PVC | 300ft

Sale price$773.36

Jason Industrial Inc. Hose - Water Hose - 4504 Wine Red PVC Water Discharge Hose & Assemblies - Medium Duty

Package Quantity: 300 FT

Buy More, Save More!
Quantity Price Each
5–14 $726.96
15–29 $657.36
30+ $618.69
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For general purpose water discharge in construction, agriculture and drip irrigation. SAE Rating: N/A
Other Ratings: N/A Tube: Wine Red, PVC
Reinforcement: Knitted Polyester Yarn Cover: Wine Red, PVC
Temperature Range: -14 deg F (-26 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo WP XX (PSI) ID
Other Features:
  • Medium duty hose
  • Rolls flat for convenient storage
  • Homogeneous construction eliminates tube and cover separation
  • Maximum bonding is due to the tube and cover being extruded simultaneously
Part Number I.D. Wall Thickness Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m ft
Uncoupled - Bulk
4504-1500 1-1/2" 38.10mm 0.076" 1.93mm Knitted 115 PSI 7.93 BAR N/A 0.21 lb./ft. 0.31 KG/m 300ft
4504-2000 2" 50.80mm 0.076" 1.93mm Knitted 115 PSI 7.93 BAR N/A 0.25 lb./ft. 0.37 KG/m 300ft
4504-2500 2-1/2" 63.50mm 0.079" 2.01mm Knitted 115 PSI 7.93 BAR N/A 0.29 lb./ft. 0.43 KG/m 300ft
4504-3000 3" 76.20mm 0.079" 2.01mm Knitted 100 PSI 6.89 BAR N/A 0.39 lb./ft. 0.58 KG/m 300ft
4504-4000 4" 101.60mm 0.081" 2.06mm Knitted 100 PSI 6.86 BAR N/A 0.60 lb./ft. 0.89 KG/m 300ft
4504-6000 6" 152.40mm 0.112" 2.84mm Knitted 75 PSI 5.17 BAR N/A 1.15 lb./ft. 1.71 KG/m 300ft
4504-8000 8" 203.20mm 0.124" 3.15mm Knitted 60 PSI 4.14 BAR N/A 1.20 lb./ft. 1.79 KG/m 300ft
Part Number I.D. Coupling Reinforcement Max. Working Press. @ 68 deg. F Weight Standard Length
in. mm PSI BAR lb. KG ft
Cut - Coupled - Coiled - Tied
4504-2000-050AB 2" 50.80mm 2" AB Pin Lug (M x F) Knitted 115 PSI 7.93 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4504-3000-050AB 3" 76.20mm 3" AB Pin Lug (M x F) Knitted 100 PSI 6.89 BAR 22.00 lb./ft. 32.60 KG/m 50ft
4504-2000-050CE 2" 50.80mm 2" Aluminum Cam Lock (C x E) Knitted 115 PSI 7.93 BAR 12.00 lb./ft. 17.80 KG/m 50ft
4504-3000-050CE 2" 50.80mm 3" Aluminum Cam Lock (C x E) Knitted 100 PSI 6.89 BAR 22.00 lb./ft. 32.60 KG/m 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4504 Series
Color(s):
  • Red
Internal Diameter:
  • 3in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
