4503-12-12-FG by Brennan Inc. | -12 Hose Barb x -12 Male Pipe | 45° Elbow | Forged Steel
Brennan Inc.

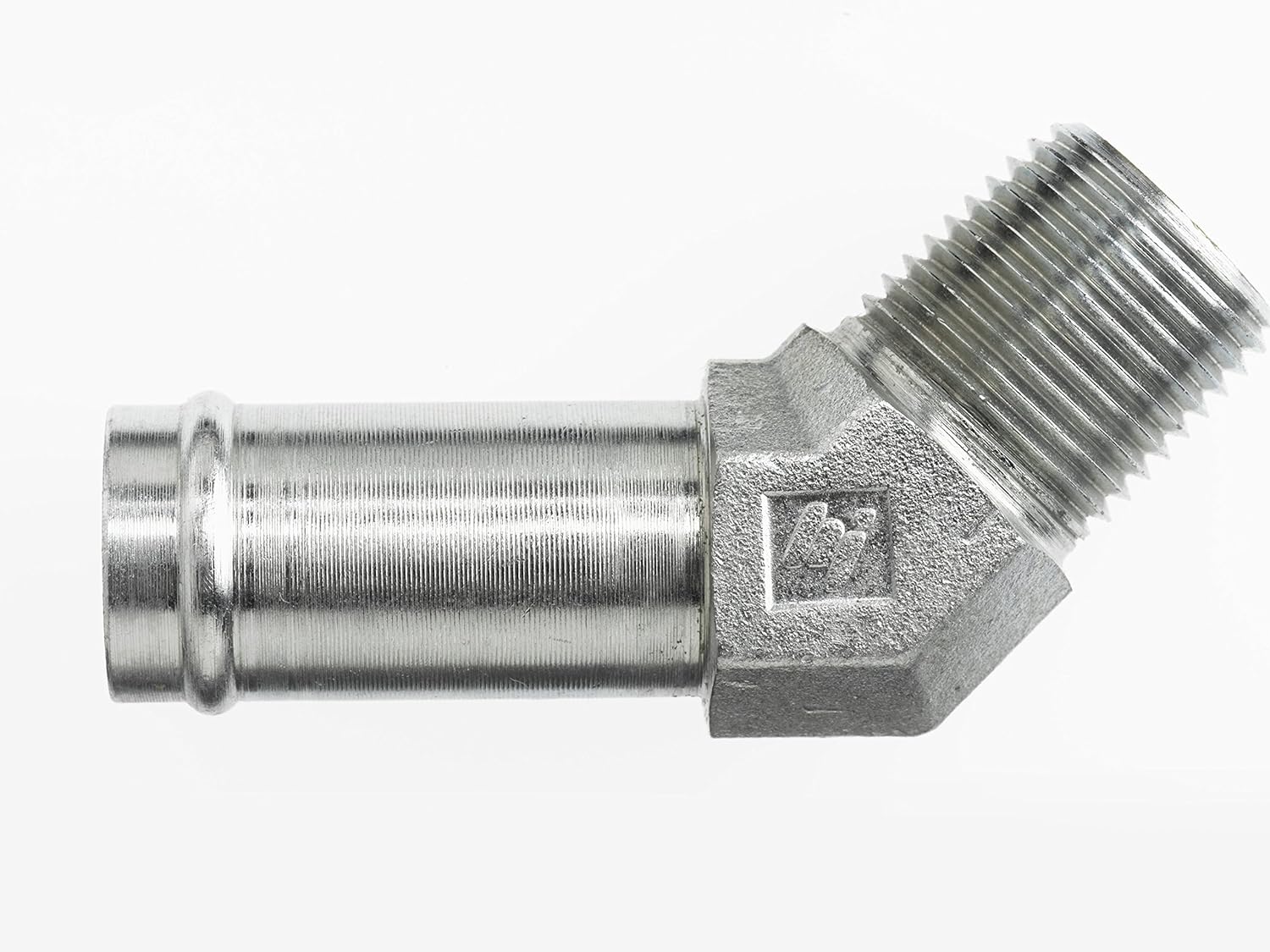

Tube Fittings & Adapters: 4503 - Hose Barb x Male Pipe 45° Elbow
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | B1 Tube O.D. | A2 NPTF | B1 Drill | A2 Drill | L Length | N Length | Y Flats |
| 4503-04-02-FG | Forged Steel | 1/4" | 1/8-27" | 0.189" | 0.188" | 1.562" | 0.640" | 0.500" |
| 4503-04-04-FG | Forged Steel | 1/4" | 1/4-18" | 0.189" | 0.281" | 1.810" | 0.830" | 0.625" |
| 4503-06-04-FG | Forged Steel | 3/8" | 1/4-18" | 0.297" | 0.281" | 1.670" | 0.860" | 0.562" |
| 4503-08-06-FG | Forged Steel | 1/2" | 3/8-18" | 0.406" | 0.406" | 1.687" | 0.953" | 0.812" |
| 4503-08-08-FG | Forged Steel | 1/2" | 1/2-14" | 0.406" | 0.531" | 1.830" | 1.170" | 0.875" |
| 4503-10-06-FG | Forged Steel | 5/8" | 3/8-18" | 0.500" | 0.406" | 1.830" | 0.980" | 0.875" |
| 4503-10-08-FG | Forged Steel | 5/8" | 1/2-14" | 0.500" | 0.531" | 1.830" | 1.170" | 0.875" |
| 4503-10-12-FG | Forged Steel | 5/8" | 3/4-14" | 0.500" | 0.719" | 1.890" | 1.200" | 1.062" |
| 4503-12-08-FG | Forged Steel | 3/4" | 1/2-14" | 0.625" | 0.531" | 1.846" | 1.170" | 0.875" |
| 4503-12-12-FG | Forged Steel | 3/4" | 3/4-14" | 0.626" | 0.709" | 1.894" | 1.200" | 1.062" |
| 4503-16-12-FG | Forged Steel | 1" | 3/4-14" | 0.844" | 0.719" | 1.930" | 1.290" | 1.312" |
| 4503-16-16-FG | Forged Steel | 1" | 1-11-1/2" | 0.843" | 0.938" | 1.930" | 1.480" | 1.312" |
| 4503-20-16-FG | Forged Steel | 1-1/4" | 1-11-1/2" | 1.078" | 0.938" | 1.930" | 1.480" | 1.312" |
| 4503-20-20-FG | Forged Steel | 1-1/4" | 1-1/4-11-1/2" | 1.094" | 1.250" | 2.060" | 1.670" | 1.625" |
| 4503-24-24-FG | Forged Steel | 1-1/2" | 1-1/2-11-1/2" | 1.343" | 1.500" | 2.146" | 1.770" | 1.875" |
| 4503-32-32-FG | Forged Steel | 2" | 2-11-1/2" | 1.843" | 1.938" | 2.240" | 2.110" | 2.500" |
| 4503-16-16-SS | Stainless Steel | 1" | 1-11-1/2" | 0.843" | 0.938" | 1.930" | 1.480" | 1.312" |
