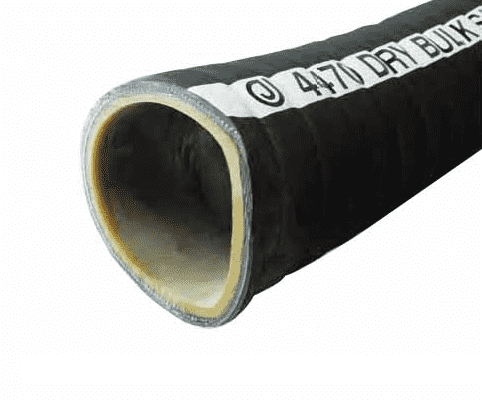

4470-0400-050 by Jason Industrial | 4470 Series | Bulk Material Suction Hose | 75 PSI | 4" ID | 4.69" OD | Black | NR/SBR | 50ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | For suction, discharge or gravity flow of abrasives from manufacturing, sandblast recovery, mineral processing power plants and spill recovery. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 1/4" Pure Gum Rubber, Tan Color |
| Reinforcement: | Two-ply Synthetic Fabric, Wire Helix, Static Wire | Cover: | EPDM, Fabric Impression, Corrugated, Black |
| Temperature Range: | -40 deg. F (-40 deg. C) to +180 deg. F (+82 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | Jason logo 4470 DRY BULK SUCTION WP (PSI) (BAR). White mylar longitudinal stripe |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Plies | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 4470-0125-100 | 1-1/4" | 31.75mm | 1.81" | 46.00mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 0.77 lb./ft. | 1.14 KG/m | 4.00" | 101.60mm | 100ft |
| 4470-0150-100 | 1-1/2" | 38.10mm | 2.10" | 53.34mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 1.11 lb./ft. | 1.65 KG/m | 4.00" | 101.60mm | 100ft |
| 4470-0200-100 | 2" | 50.80mm | 2.60" | 66.04mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 1.30 lb./ft. | 1.93 KG/m | 12.00" | 304.80mm | 100ft |
| 4470-0250-100 | 2-1/2" | 63.50mm | 3.11" | 78.99mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 1.65 lb./ft. | 2.46 KG/m | 17.00" | 431.80mm | 100ft |
| 4470-0300-100 | 3" | 76.20mm | 3.66" | 92.96mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 2.25 lb./ft. | 3.35 KG/m | 18.00" | 457.20mm | 100ft |
| 4470-0400-050 | 4" | 101.60mm | 4.69" | 119.13mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 2.93 lb./ft. | 4.36 KG/m | 24.00" | 609.60mm | 50ft |
| 4470-0400-100 | 4" | 101.60mm | 4.69" | 119.13mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 2.93 lb./ft. | 4.36 KG/m | 24.00" | 609.60mm | 100ft |
| 4470-0500-100 | 5" | 127.00mm | 5.70" | 144.78mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 3.83 lb./ft. | 5.70 KG/m | 30.00" | 762.00mm | 100ft |
| 4470-0600-050 | 6" | 152.40mm | 6.73" | 170.94mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 5.00 lb./ft. | 7.44 KG/m | 32.00" | 812.80mm | 50ft |
| 4470-0600-100 | 6" | 152.40mm | 6.73" | 170.94mm | 2 | 75 PSI | 5.17 BAR | 29.0 inHg | 5.00 lb./ft. | 7.44 KG/m | 32.00" | 812.80mm | 100ft |
| 4470-0800-020 | 8" | 203.20mm | 9.13" | 231.90mm | 2 | 60 PSI | 4.14 BAR | 29.0 inHg | 10.05 lb./ft. | 14.96 KG/m | 40.00" | 1016.00mm | 20ft |
| 4470-0800-050 | 8" | 203.20mm | 9.13" | 231.90mm | 2 | 60 PSI | 4.14 BAR | 29.0 inHg | 10.05 lb./ft. | 14.96 KG/m | 40.00" | 1016.00mm | 50ft |
