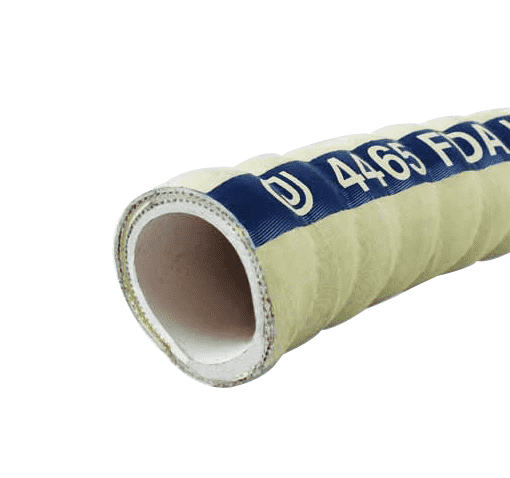

4465-0150-100 by Jason Industrial | 4465 Series | FDA Liquid Food Suction Hose | 150 PSI | 1-1/2" ID | 2.05" OD | White | 100ft

4465-0150-100 by Jason Industrial | 4465 Series | FDA Liquid Food Suction Hose | 150 PSI | 1-1/2" ID | 2.05" OD | White | 100ft

Sale price$1,255.78

Jason Industrial Inc. Hose - Food Hose - 4465 FDA Liquid Food Suction Hose - White

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,180.43
8–14 $1,130.20
15+ $1,004.62
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For suction and discharge of liquid food products, including oily edibles and beer. SAE Rating: N/A
Other Ratings: FDA Grade Tube Tube: White Nitrile Rubber, FDA Grade
Reinforcement: Two-ply Reinforcement, Steel Wire Helix Cover: Nitrile, Corrugated, White
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4465 FDA LIQUID FOOD SUCTION WP 150 PSI 10.35 BAR. Blue mylar longitudinal stripe.
Other Features:
  • Corrugations make the hose extremely flexible
  • FDA Grade tube, nitrile rubber
  • Nitrile rubber cover is weather and abrasion resistant
  • All sizes are full vacuum
  • Capable of handling a wide variety of food products
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4465-0075-100 3/4" 19.05mm 1.10" 28.00mm 2 150 PSI 10.35 BAR 29.0 inHg 0.34 lb./ft. 0.51 KG/m 2.40" 60.00mm 100ft
4465-0100-100 1" 25.40mm 1.38" 35.00mm 2 150 PSI 10.35 BAR 29.0 inHg 0.45 lb./ft. 0.67 KG/m 3.10" 80.00mm 100ft
4465-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 150 PSI 10.35 BAR 29.0 inHg 1.06 lb./ft. 1.58 KG/m 4.00" 101.60mm 100ft
4465-0200-100 2" 50.80mm 2.56" 65.02mm 2 150 PSI 10.35 BAR 29.0 inHg 1.35 lb./ft. 2.01 KG/m 5.00" 127.00mm 100ft
4465-0300-100 3" 76.20mm 3.56" 90.42mm 2 150 PSI 10.35 BAR 29.0 inHg 2.08 lb./ft. 3.10 KG/m 6.00" 152.40mm 100ft
4465-0400-100 4" 101.60mm 4.69" 119.13mm 2 150 PSI 10.35 BAR 29.0 inHg 3.21 lb./ft. 4.79 KG/m 8.00" 203.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4465 Series
Color(s):
  • White/Off-White
Internal Diameter:
  • 1.50in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
