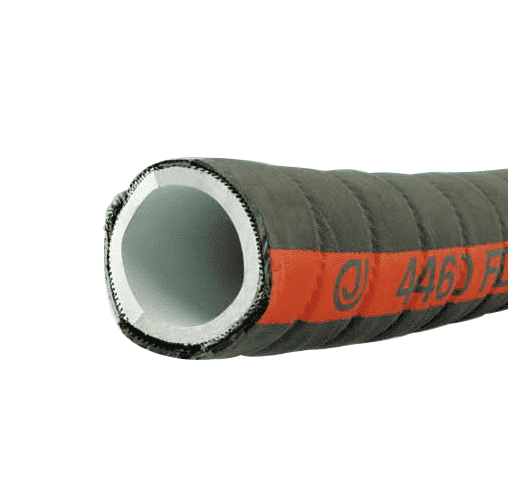

4460-0600-020 by Jason Industrial | 4460 Series | FDA Bulk Food Suction Hose | 150 PSI | 6" ID | 6.77" OD | Gray | 20ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | For suction, pneumatic or gravity transfer of flour, sugar, syrup or edible grains. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | FDA Grade Tube | Tube: | White Natural Rubber (NR), 3/16" Thick, FDA Grade |
| Reinforcement: | Two-ply Reinforcement, Steel Wire Helix | Cover: | Natural Rubber, Gray, Flat Corrugations |
| Temperature Range: | -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | Jason logo 4460 FDA ID 3/16" Tube BULK FOOD SUCTION WP (PSI) (BAR). Orange mylar longitudinal stripe |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Plies | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 4460-0100-100 | 1" | 25.40mm | 1.49" | 37.85mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 0.69 lb./ft. | 1.03 KG/m | 4.50" | 114.30mm | 100ft |
| 4460-0150-100 | 1-1/2" | 38.10mm | 2.05" | 52.07mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 0.98 lb./ft. | 1.46 KG/m | 5.00" | 127.00mm | 100ft |
| 4460-0200-100 | 2" | 50.80mm | 2.66" | 67.56mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 1.37 lb./ft. | 2.04 KG/m | 6.00" | 152.40mm | 100ft |
| 4460-0200-200 | 2" | 50.80mm | 2.66" | 67.56mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 1.37 lb./ft. | 2.04 KG/m | 6.00" | 152.40mm | 200ft |
| 4460-0250-100 | 2-1/2" | 63.50mm | 3.07" | 77.98mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 1.67 lb./ft. | 2.49 KG/m | 8.00" | 203.20mm | 100ft |
| 4460-0300-100 | 3" | 76.20mm | 3.62" | 91.95mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 2.14 lb./ft. | 3.18 KG/m | 10.00" | 254.00mm | 100ft |
| 4460-0350-100 | 3-1/2" | 88.90mm | 4.21" | 106.93mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 2.60 lb./ft. | 3.87 KG/m | 12.00" | 304.80mm | 100ft |
| 4460-0400-100 | 4" | 101.60mm | 4.72" | 119.89mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 3.14 lb./ft. | 4.67 KG/m | 20.00" | 508.00mm | 100ft |
| 4460-0450-060 | 4-1/2" | 114.30mm | 5.27" | 133.86mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 3.94 lb./ft. | 5.86 KG/m | 22.00" | 558.80mm | 60ft |
| 4460-0500-100 | 5" | 127.00mm | 5.71" | 145.03mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 4.67 lb./ft. | 6.95 KG/m | 24.00" | 609.60mm | 100ft |
| 4460-0600-020 | 6" | 152.40mm | 6.77" | 171.96mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 5.98 lb./ft. | 8.90 KG/m | 26.00" | 660.40mm | 20ft |
| 4460-0600-100 | 6" | 152.40mm | 6.77" | 171.96mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 5.98 lb./ft. | 8.90 KG/m | 26.00" | 660.40mm | 100ft |
| 4460-0662-020 | 6-5/8" | 168.28mm | 7.52" | 191.01mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 7.31 lb./ft. | 10.88 KG/m | 29.00" | 736.60mm | 20ft |
| 4460-0688-020 | 6-7/8" | 174.63mm | 7.80" | 198.13mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 7.81 lb./ft. | 11.58 KG/m | 30.00" | 762.60mm | 20ft |
| 4460-0800-020 | 8" | 203.20mm | 8.78" | 223.01mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 9.36 lb./ft. | 13.93 KG/m | 32.00" | 812.80mm | 20ft |
| 4460-0862-020 | 8-5/8" | 219.08mm | 9.33" | 236.98mm | 2 | 125 PSI | 8.62 BAR | 29.0 inHg | 9.64 lb./ft. | 14.35 KG/m | 36.00" | 914.40mm | 20ft |
| 4460-1000-020 | 10" | 254.00mm | 10.83" | 275.08mm | 2 | 125 PSI | 8.62 BAR | 29.0 inHg | 11.57 lb./ft. | 17.22 KG/m | 44.00" | 1117.60mm | 20ft |
| 4460-1200-020 | 12" | 304.80mm | 12.83" | 325.88mm | 2 | 100 PSI | 6.89 BAR | 29.0 inHg | 15.27 lb./ft. | 22.72 KG/m | 60.00" | 1524.00mm | 20ft |
| 4460-1400-020 | 14" | 355.60mm | 14.76" | 374.90mm | 2 | 100 PSI | 6.89 BAR | 29.0 inHg | 18.41 lb./ft. | 27.40 KG/m | 72.00" | 1828.80mm | 20ft |
