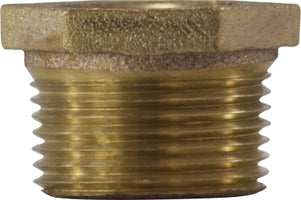

44557 by Midland | Hex Bushing | 1" Female Pipe x 1/8" Male Pipe | Straight | Bronze
Minimum Order Quantity: 5 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Applications: |
Water, Plumbing, Heating, Pneumatic and Marine Applications Class 125 (150) For steam, water, gas, oil and air service |
||
|---|---|---|---|
| Specifications: |
UL/FM Approved (UL842, UL258, UL125, FM), 1S0 9001:2000, RoHS Compliant Materials - ASTM B62-93 (85,5,5,5) C83600 Dimensions - ANSI B 16.15 Threads - ANSI B2.1 or BA 21 and Fed. WW-P-460C, MSS-SP-106, ANSI/ASME B1.20.1 |
||
| Crossover Series: |
|---|
| 110RB |
 |
||||
|---|---|---|---|---|
| Part Number | Size | A | Hex | Approx. Weight (Lbs.) |
| 44500 (44-500) |
1/4" x 1/8" | 0.58" | 0.66" | 0.02 |
| 44501 (44-501) |
3/8" x 1/8" | 0.64" | 0.72" | 0.06 |
| 44502 (44-502) |
3/8" x 1/4" | 0.64" | 0.75" | 0.04 |
| 44503 (44-503) |
1/2" x 1/8" | 0.75" | 0.92" | 0.10 |
| 44504 (44-504) |
1/2" x 1/4" | 0.75" | 0.93" | 0.09 |
| 44505 (44-505) |
1/2" x 3/8" | 0.75" | 0.92" | 0.08 |
| 44506 (44-506) |
3/4" x 1/8" | 0.87" | 1.15" | 0.17 |
| 44507 (44-507) |
3/4" x 1/4" | 0.85" | 1.14" | 0.15 |
| 44508 (44-508) |
3/4" x 3/8" | 0.85" | 1.14" | 0.14 |
| 44509 (44-509) |
3/4" x 1/2" | 0.85" | 1.15" | 0.14 |
| 44557 | 1" x 1/8" | 1.05" | 1.43" | 0.24 |
| 44510* (44-510) |
1" x 1/4" | 1.05" | 1.43" | 0.23 |
| 44511* (44-511) |
1" x 3/8" | 1.05" | 1.50" | 0.22 |
| 44512 (44-512) |
1" x 1/2" | 1.00" | 1.40" | 0.25 |
| 44513 (44-513) |
1" x 3/4" | 1.00" | 1.43" | 0.21 |
| 44514 (44-514) |
1-1/4" x 1/4" | 1.22" | 1.10" | 0.34 |
| 44515 (44-515) |
1-1/4" x 3/8" | 1.19" | 1.84" | 0.35 |
| 44516* (44-516) |
1-1/4" x 1/2" | 1.14" | 1.33" | 0.34 |
| 44517 (44-517) |
1-1/4" x 3/4" | 1.08" | 1.75" | 0.40 |
| 44518 (44-518) |
1-1/4" x 1" | 1.08" | 1.76" | 0.33 |
| 44519* (44-519) |
1-1/2" x 1/4" | 1.09" | 2.12" | 0.47 |
| 44520* (44-520) |
1-1/2" x 3/8" | 1.35" | 2.16" | 0.45 |
| 44521* (44-521) |
1-1/2" x 1/2" | 1.20" | 2.10" | 0.44 |
| 44522* (44-522) |
1-1/2" x 3/4" | 1.20" | 2.12" | 0.48 |
| 44523 (44-523) |
1-1/2" x 1" | 1.14" | 2.08" | 0.53 |
| 44524 (44-524) |
1-1/2" x 1-1/4" | 1.14" | 2.12" | 0.45 |
| 44527* (44-527) |
2" x 1/2" | 1.27" | 1.32" | 0.67 |
| 44528* (44-528) |
2" x 3/4" | 1.27" | 1.62" | 0.74 |
| 44529* (44-529) |
2" x 1" | 1.29" | 1.95" | 0.76 |
| 44530 (44-530) |
2" x 1-1/4" | 1.22" | 2.47" | 0.86 |
| 44531 (44-531) |
2" x 1-1/2" | 1.22" | 2.50" | 0.83 |
| 44532 (44-532) |
2-1/2" x 1" | 1.53" | 1.94" | 1.16 |
| 44534 (44-534) |
2-1/2" x 1-1/2" | 1.50" | 2.38" | 1.36 |
| 44535 (44-535) |
2-1/2" x 2" | 1.43" | 2.97" | 1.13 |
| 44537 (44-537) |
3" x 1-1/2" | 1.16" | 2.68" | 1.82 |
| 44538 (44-538) |
3" x 2" | 1.61" | 3.70" | 2.33 |
| 44539 (44-539) |
3" x 2-1/2" | 1.53" | 3.70" | 2.19 |
| 44541 (44-541) |
4" x 2" | 1.81" | 4.62" | 3.51 |
| 44543 (44-543) |
4" x 3" | 2.01" | 4.62" | 4.22 |
* Inside Hex
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
