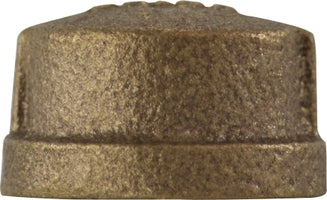

44480 by Midland | 3" Female Pipe | Cap | Bronze
Buy more, save moreDiscounts applied in cart/checkout.
44480 by Midland | 3" Female Pipe | Cap | Bronze
Sale price$83.69
SPECIFICATIONS
| Applications: |
Water, Plumbing, Heating, Pneumatic and Marine Applications Class 125 (150) For steam, water, gas, oil and air service |
||
|---|---|---|---|
| Specifications: |
UL/FM Approved (UL842, UL258, UL125, FM), 1S0 9001:2000, RoHS Compliant Materials - ASTM B62-93 (85,5,5,5) C83600 Dimensions - ANSI B 16.15 Threads - ANSI B2.1 or BA 21 and Fed. WW-P-460C, MSS-SP-106, ANSI/ASME B1.20.1 |
||
| Crossover Series: |
|---|
| 108RB |
 |
|||
|---|---|---|---|
| Part Number | Female Pipe | A | Approx. Weight (Lbs.) |
| 44470 (44-470) |
1/8" | 0.53" | 0.04 |
| 44471 (44-471) |
1/4" | 0.58" | 0.06 |
| 44472 (44-472) |
3/8" | 0.66" | 0.10 |
| 44473 (44-473) |
1/2" | 0.75" | 0.13 |
| 44474 (44-474) |
3/4" | 0.87" | 0.19 |
| 44475 (44-475) |
1" | 1.03" | 0.30 |
| 44476 (44-476) |
1-1/4" | 1.10" | 0.51 |
| 44477 (44-477) |
1-1/2" | 1.12" | 0.66 |
| 44478 (44-478) |
2" | 1.35" | 1.00 |
| 44480 (44-480) |
3" | 1.83" | 2.74 |
Additional Product Data:
Ends Configuration:
Material(s):
Specifications and Approvals:
