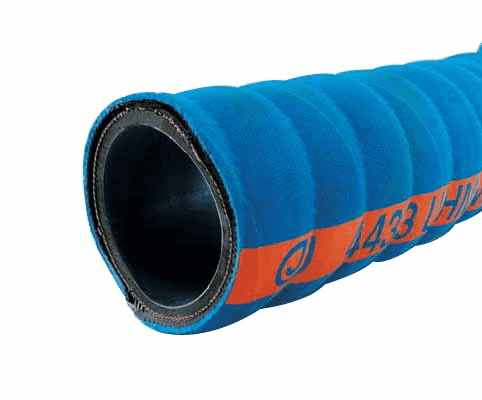

4433-0125-100 by Jason Industrial | 4433 Series | Chemical Suction Hose | 200 PSI | 1-1/4" ID | 1.77" OD | Blue | UHMWPE | 100ft

4433-0125-100 by Jason Industrial | 4433 Series | Chemical Suction Hose | 200 PSI | 1-1/4" ID | 1.77" OD | Blue | UHMWPE | 100ft

Sale price$1,435.18

Jason Industrial Inc. Hose - Chemical Hose - 4433 UHMWPE Chemical Suction Hose - Blue

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,349.07
8–14 $1,291.66
15+ $1,148.14
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4433 Series
Color(s):
  • Blue
Internal Diameter:
  • 1.25in

SPECIFICATIONS

Application: For in-plant or tank truck use to transfer chemicals and solvents. SAE Rating: N/A
Other Ratings: N/A Tube: Ultra-High Molecular Weight Polyethylene (UHMWPE)
Reinforcement: Two Plies of Synthetic Fabric with a Wire Helix Cover: EPDM, Blue, Corrugated
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4433 UHMWPE ACID CHEMICAL ID WP (PSI) (BAR). Orange mylar longitudinal stripe.
Other Features:
  • Corrugations make the hose flexible
  • Handles 98% of the chemical/acid applications
  • Reduces the need to stock several types of chemical hoses
  • EPDM cover is heat, weather & abrasion resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4433-0075-100 3/4" 19.05mm 1.14" 28.96mm 2 200 PSI 13.79 BAR 29.9 inHg 0.38 lb./ft. 0.57 KG/m 6.00" 152.40mm 100ft
4433-0100-100 1" 25.40mm 1.46" 37.08mm 2 200 PSI 13.79 BAR 29.9 inHg 0.50 lb./ft. 0.74 KG/m 6.50" 165.10mm 100ft
4433-0125-100 1-1/4" 31.75mm 1.77" 44.96mm 2 200 PSI 13.79 BAR 29.9 inHg 0.58 lb./ft. 0.86 KG/m 9.00" 228.60mm 100ft
4433-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 200 PSI 13.79 BAR 29.9 inHg 0.71 lb./ft. 1.06 KG/m 10.00" 254.00mm 100ft
4433-0200-100 2" 50.80mm 2.64" 67.06mm 2 200 PSI 13.79 BAR 29.9 inHg 1.01 lb./ft. 1.50 KG/m 12.00" 304.80mm 100ft
4433-0250-100 2-1/2" 63.50mm 3.15" 80.01mm 2 200 PSI 13.79 BAR 29.9 inHg 1.46 lb./ft. 2.17 KG/m 15.00" 381.00mm 100ft
4433-0300-100 3" 76.20mm 3.86" 98.04mm 2 200 PSI 13.79 BAR 29.9 inHg 1.97 lb./ft. 2.93 KG/m 16.00" 406.40mm 100ft
4433-0400-100 4" 101.60mm 4.72" 119.89mm 2 150 PSI 10.35 BAR 29.9 inHg 2.60 lb./ft. 3.87 KG/m 18.00" 457.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
