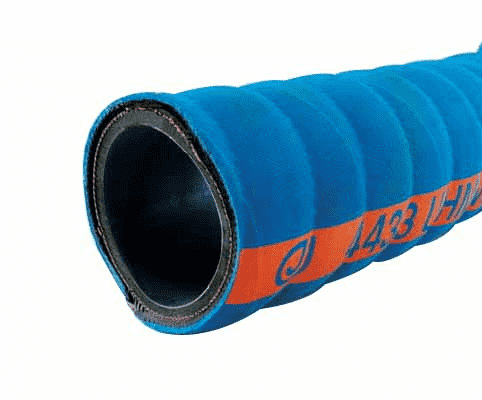

4433-0075-100 by Jason Industrial | 4433 Series | Chemical Suction Hose | 200 PSI | 3/4" ID | 1.14" OD | Blue | UHMWPE | 100ft

4433-0075-100 by Jason Industrial | 4433 Series | Chemical Suction Hose | 200 PSI | 3/4" ID | 1.14" OD | Blue | UHMWPE | 100ft

Sale price$1,016.32

Jason Industrial Inc. Hose - Chemical Hose - 4433 UHMWPE Chemical Suction Hose - Blue

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $955.34
8–14 $914.69
15+ $813.06
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For in-plant or tank truck use to transfer chemicals and solvents. SAE Rating: N/A
Other Ratings: N/A Tube: Ultra-High Molecular Weight Polyethylene (UHMWPE)
Reinforcement: Two Plies of Synthetic Fabric with a Wire Helix Cover: EPDM, Blue, Corrugated
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4433 UHMWPE ACID CHEMICAL ID WP (PSI) (BAR). Orange mylar longitudinal stripe.
Other Features:
  • Corrugations make the hose flexible
  • Handles 98% of the chemical/acid applications
  • Reduces the need to stock several types of chemical hoses
  • EPDM cover is heat, weather & abrasion resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4433-0075-100 3/4" 19.05mm 1.14" 28.96mm 2 200 PSI 13.79 BAR 29.9 inHg 0.38 lb./ft. 0.57 KG/m 6.00" 152.40mm 100ft
4433-0100-100 1" 25.40mm 1.46" 37.08mm 2 200 PSI 13.79 BAR 29.9 inHg 0.50 lb./ft. 0.74 KG/m 6.50" 165.10mm 100ft
4433-0125-100 1-1/4" 31.75mm 1.77" 44.96mm 2 200 PSI 13.79 BAR 29.9 inHg 0.58 lb./ft. 0.86 KG/m 9.00" 228.60mm 100ft
4433-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 200 PSI 13.79 BAR 29.9 inHg 0.71 lb./ft. 1.06 KG/m 10.00" 254.00mm 100ft
4433-0200-100 2" 50.80mm 2.64" 67.06mm 2 200 PSI 13.79 BAR 29.9 inHg 1.01 lb./ft. 1.50 KG/m 12.00" 304.80mm 100ft
4433-0250-100 2-1/2" 63.50mm 3.15" 80.01mm 2 200 PSI 13.79 BAR 29.9 inHg 1.46 lb./ft. 2.17 KG/m 15.00" 381.00mm 100ft
4433-0300-100 3" 76.20mm 3.86" 98.04mm 2 200 PSI 13.79 BAR 29.9 inHg 1.97 lb./ft. 2.93 KG/m 16.00" 406.40mm 100ft
4433-0400-100 4" 101.60mm 4.72" 119.89mm 2 150 PSI 10.35 BAR 29.9 inHg 2.60 lb./ft. 3.87 KG/m 18.00" 457.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4433 Series
Color(s):
  • Blue
Internal Diameter:
  • 0.75in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
