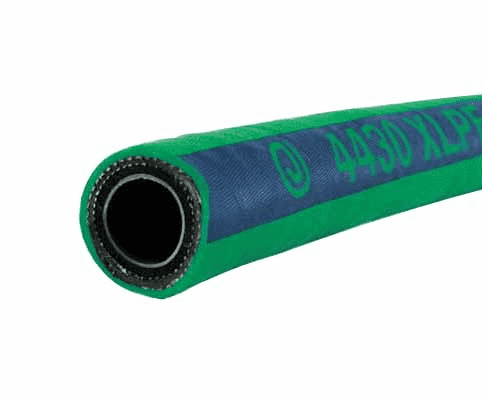

4430-0150-100 by Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 200 PSI | 1-1/2" ID | 2.09" OD | Green | Polyethylene | 100ft

4430-0150-100 by Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 200 PSI | 1-1/2" ID | 2.09" OD | Green | Polyethylene | 100ft

Sale price$1,517.16

Jason Industrial Inc. Hose - Chemical Hose - 4430 Cross-Linked Polyethylene Suction Hose - Green

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,426.13
8–14 $1,365.44
15+ $1,213.73
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4430 Series
Color(s):
  • Green
Internal Diameter:
  • 1.50in

SPECIFICATIONS

Application: For in-plant or tank truck use to transfer chemicals and solvents. SAE Rating: N/A
Other Ratings: N/A Tube: Clear, Smooth Cross-Linked Polyethylene (XLPE)
Reinforcement: Two Plies of Synthetic Fabric with a Wire Helix and a Copper Static Wire Cover: EPDM, Green with Fabric Impression
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4430 XLPE ACID CHEMICAL ID WP (PSI) (BAR). Blue mylar longitudinal stripe
Other Features:
  • Versatile, it handles a variety of chemicals
  • Handles 90% of the chemical/acid applications
  • Reduces the need to stock several types of chemical hoses
  • EPDM cover is heat, weather & abrasion resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4430-0075-100 3/4" 19.05mm 1.19" 30.23mm 2 200 PSI 13.79 BAR 29.9 inHg 0.36 lb./ft. 0.54 KG/m 6.00" 152.40mm 100ft
4430-0100-100 1" 25.40mm 1.50" 38.10mm 2 200 PSI 13.79 BAR 29.9 inHg 0.46 lb./ft. 0.73 KG/m 6.50" 165.10mm 100ft
4430-0125-100 1-1/4" 31.75mm 1.75" 44.45mm 2 200 PSI 13.79 BAR 29.9 inHg 0.55 lb./ft. 0.82 KG/m 9.00" 228.60mm 100ft
4430-0150-100 1-1/2" 38.10mm 2.09" 53.09mm 2 200 PSI 13.79 BAR 29.9 inHg 0.69 lb./ft. 1.03 KG/m 10.00" 254.00mm 100ft
4430-0200-100 2" 50.80mm 2.61" 66.29mm 2 200 PSI 13.79 BAR 29.9 inHg 0.98 lb./ft. 1.46 KG/m 12.00" 304.80mm 100ft
4430-0250-100 2-1/2" 63.50mm 3.19" 81.03mm 2 150 PSI 10.35 BAR 29.9 inHg 1.35 lb./ft. 2.01 KG/m 15.00" 381.00mm 100ft
4430-0300-100 3" 76.20mm 3.75" 95.25mm 2 150 PSI 10.35 BAR 29.9 inHg 1.90 lb./ft. 2.83 KG/m 16.00" 406.40mm 100ft
4430-0400-100 4" 101.60mm 4.88" 123.95mm 2 150 PSI 10.35 BAR 29.9 inHg 2.57 lb./ft. 3.82 KG/m 18.00" 457.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
