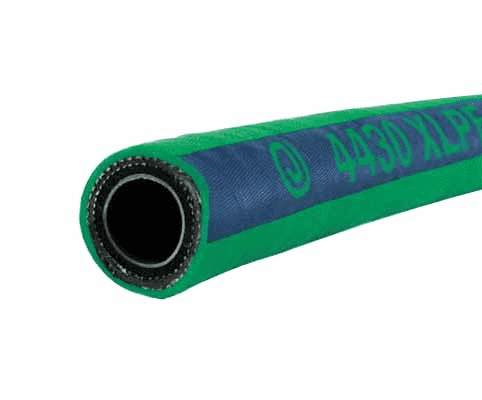

4430-0125-100 by Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 200 PSI | 1-1/4" ID | 1.75" OD | Green | Polyethylene | 100ft

4430-0125-100 by Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 200 PSI | 1-1/4" ID | 1.75" OD | Green | Polyethylene | 100ft

Sale price$1,229.76

Jason Industrial Inc. Hose - Chemical Hose - 4430 Cross-Linked Polyethylene Suction Hose - Green

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,155.97
8–14 $1,106.78
15+ $983.81
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For in-plant or tank truck use to transfer chemicals and solvents. SAE Rating: N/A
Other Ratings: N/A Tube: Clear, Smooth Cross-Linked Polyethylene (XLPE)
Reinforcement: Two Plies of Synthetic Fabric with a Wire Helix and a Copper Static Wire Cover: EPDM, Green with Fabric Impression
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4430 XLPE ACID CHEMICAL ID WP (PSI) (BAR). Blue mylar longitudinal stripe
Other Features:
  • Versatile, it handles a variety of chemicals
  • Handles 90% of the chemical/acid applications
  • Reduces the need to stock several types of chemical hoses
  • EPDM cover is heat, weather & abrasion resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4430-0075-100 3/4" 19.05mm 1.19" 30.23mm 2 200 PSI 13.79 BAR 29.9 inHg 0.36 lb./ft. 0.54 KG/m 6.00" 152.40mm 100ft
4430-0100-100 1" 25.40mm 1.50" 38.10mm 2 200 PSI 13.79 BAR 29.9 inHg 0.46 lb./ft. 0.73 KG/m 6.50" 165.10mm 100ft
4430-0125-100 1-1/4" 31.75mm 1.75" 44.45mm 2 200 PSI 13.79 BAR 29.9 inHg 0.55 lb./ft. 0.82 KG/m 9.00" 228.60mm 100ft
4430-0150-100 1-1/2" 38.10mm 2.09" 53.09mm 2 200 PSI 13.79 BAR 29.9 inHg 0.69 lb./ft. 1.03 KG/m 10.00" 254.00mm 100ft
4430-0200-100 2" 50.80mm 2.61" 66.29mm 2 200 PSI 13.79 BAR 29.9 inHg 0.98 lb./ft. 1.46 KG/m 12.00" 304.80mm 100ft
4430-0250-100 2-1/2" 63.50mm 3.19" 81.03mm 2 150 PSI 10.35 BAR 29.9 inHg 1.35 lb./ft. 2.01 KG/m 15.00" 381.00mm 100ft
4430-0300-100 3" 76.20mm 3.75" 95.25mm 2 150 PSI 10.35 BAR 29.9 inHg 1.90 lb./ft. 2.83 KG/m 16.00" 406.40mm 100ft
4430-0400-100 4" 101.60mm 4.88" 123.95mm 2 150 PSI 10.35 BAR 29.9 inHg 2.57 lb./ft. 3.82 KG/m 18.00" 457.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4430 Series
Color(s):
  • Green
Internal Diameter:
  • 1.25in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
