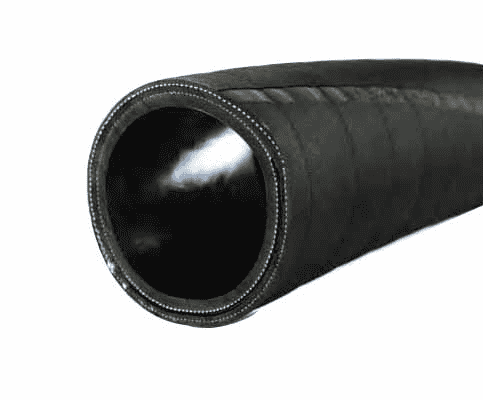

4429-0200-100 by Jason Industrial | 4429 Series | Hot Tar & Asphalt Suction Hose | 150 PSI | 2" ID | 2.72" OD | Black | 100ft
Jason Industrial Inc. Hose - Material Handling Hose - 4429 Hot Tar & Asphalt Suction Hose - 150 PSI - Black
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,882.90 |
| 4–9 | $2,760.23 |
| 10+ | $2,453.54 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
150
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Application: | Hose is specially designed for conveying hot tar and asphalt | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Special Elastomer Compound, Black, Smooth, Synthetic Oil, Abrasion and Heat Resistant |
| Reinforcement: | Two or Four-ply High Tensile Cord, Steel Wire Helix | Cover: | Blend of Synthetic Elastomer Compounds, Black and Smooth, Anti-static |
| Temperature Range: | -22 deg. F (-30 deg. C) to +356 deg. F (+180 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | Jason logo 4429 HOT ASPHALT 356°F/180°C 150 PSI 4:1. Embossed brand |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Plies | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 4429-0200-100 | 2" | 50.80mm | 2.72" | 69.00mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 1.77 lb./ft. | 2.65 KG/m | 10.00" | 254.00mm | 100ft |
| 4429-0300-100 | 3" | 76.20mm | 3.78" | 96.00mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 2.82 lb./ft. | 4.21 KG/m | 15.00" | 380.00mm | 100ft |
| 4429-0400-100 | 4" | 101.60mm | 4.80" | 122.00mm | 4 | 150 PSI | 10.35 BAR | 29.0 inHg | 3.82 lb./ft. | 5.70 KG/m | 20.00" | 510.00mm | 100ft |
