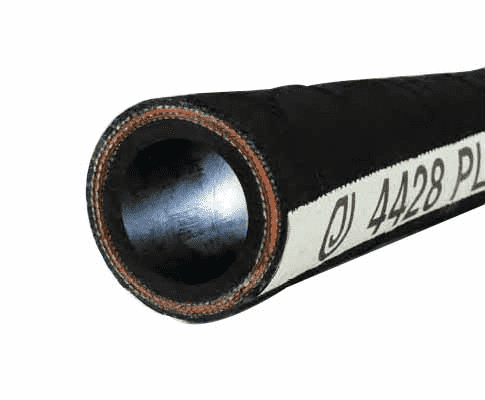

4428-0250-100 by Jason Industrial | 4428 Series | Plaster and Grout Hose | 800 PSI | 2-1/2" ID | 3.31" OD | Black | NR/BR | 100ft
Jason Industrial Inc. Hose - Material Handling Hose - 4428 Plaster and Grout Hose - Black
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 2–3 | $2,669.43 |
| 4–9 | $2,555.84 |
| 10+ | $2,271.86 |
Discounts applied in cart/checkout.
SPECIFICATIONS
| Application: | Used for spraying plaster, grout, sand and gypsym | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | NR/SBR Blend |
| Reinforcement: | Plies of Synthetic Textile with a Static Wire | Cover: | NR/SBR Blend, Pin-pricked |
| Temperature Range: | -40 deg. F (-40 deg. C) to +158 deg. F (+70 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | Jason logo 4428 PLASTER GROUT WP 800 PSI 55.2 BAR. White mylar longitudinal stripe. |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Plies | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 4428-0150-100 | 1-1/2" | 38.10mm | 2.20" | 56.00mm | 4 | 800 PSI | 55.20 BAR | N/A | 1.07 lb./ft. | 1.59 KG/m | N/A | N/A | 100ft |
| 4428-0200-100 | 2" | 50.80mm | 2.76" | 70.00mm | 4 | 800 PSI | 55.20 BAR | N/A | 1.43 lb./ft. | 2.13 KG/m | N/A | N/A | 100ft |
| 4428-0250-100 | 2-1/2" | 63.50mm | 3.31" | 84.00mm | 4 | 800 PSI | 55.20 BAR | N/A | 1.73 lb./ft. | 2.58 KG/m | N/A | N/A | 100ft |
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
800
Tubing Construction:
Cover Construction:
Special Properties:
