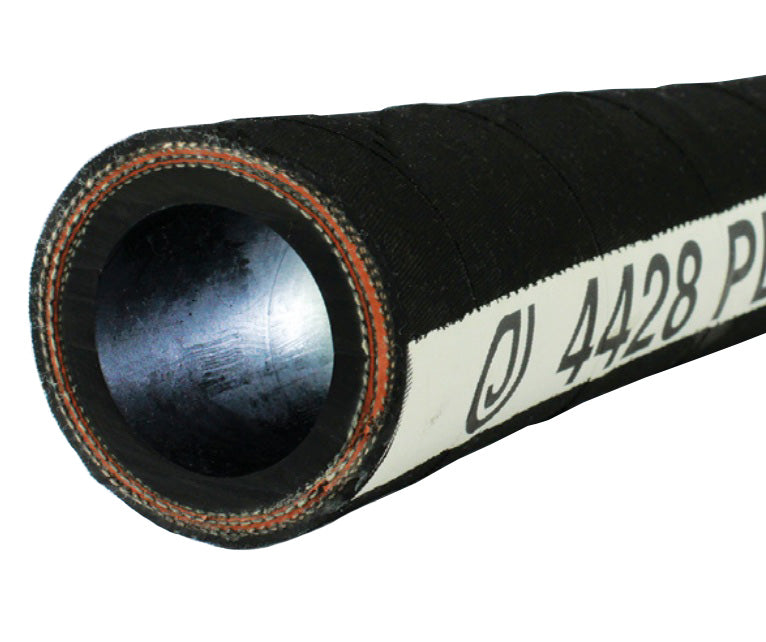

4428-0250-100 by Jason Industrial | 4428 Series | Plaster and Grout Hose | NR/BR | 2-1/2" ID | 3.31" OD | 800 PSI | Black | 100ft
Package Quantity: 100 FT
Buy more, save moreDiscounts applied in cart/checkout.
Material Handling Hose
Jason Industrial | 4428 Series
Plaster and Grout Hose
1
What is this product used for?
- Used for spraying plaster, grout, sand and gypsym.
2
What are the key specifications?
Tube
NR/BR Blend
Cover
SBR/EPDM Blend, Pin-Pricked
Reinforcement
Four Plies of Synthetic Textile With a Static Wire
Temperature Range
-40°F (-40°C) to +158°F (+70°C)
Colors
Black
Branding
Jason logo 4428 PLASTER GROUT WP 800 PSI 55.2 BAR. White mylar longitudinal stripe.
Specifications
N/A
Design Factor
3:1
3
What are the main product features?
- Cover ozone and weather resistant.
- Very good abrasion resistance.
- Handles a variety of applications.
4
Which sizes or configurations are available?
| Part Number 100ft |
ID | OD | Reinfor- cement Plies |
Max. Working Pressure @ 68° F |
Vacuum @ 68°F |
Weight (lbs/ft) |
Minimum Bend Radius |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | BAR | in of Hg | in | mm | |||
| 4428-0100-100 | 1" | 25.40mm | 1.67" | 42.40mm | 4 | 800 PSI | 55.20 BAR | — | 1.05lbs | — | — |
| 4428-0150-100 | 1-1/2" | 38.10mm | 2.20" | 56.00mm | 4 | 800 PSI | 55.20 BAR | — | 1.07lbs | — | — |
| 4428-0200-100 | 2" | 50.80mm | 2.76" | 70.00mm | 4 | 800 PSI | 55.20 BAR | — | 1.43lbs | — | — |
| 4428-0250-100 | 2-1/2" | 63.50mm | 3.31" | 84.00mm | 4 | 800 PSI | 55.20 BAR | — | 1.73lbs | — | — |
WARNING: Working pressure (W.P.) is temperature dependent.
No by the foot sales. This is a Packaged Length product.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
800
Tubing Construction:
Cover Construction:
Special Properties:
