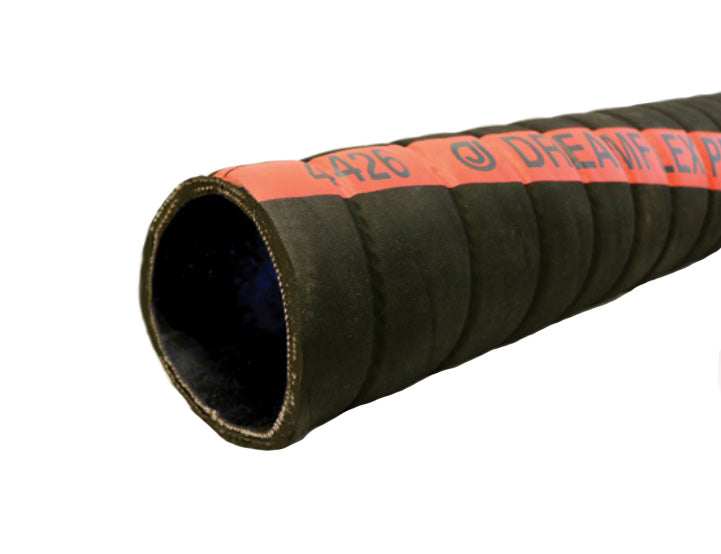

4426-0600-100 by Jason Industrial | 4426 Series | DREAMFLEX™ Petroleum Transfer & Suction Hose SΩ | Nitrile | 6" ID | 6.75" OD | 150 PSI | Black | 100ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Petroleum Hose
Jason Industrial | 4426 Series
DREAMFLEX™ Petroleum Transfer & Suction Hose SΩ
1
What is this product used for?
- For suction and discharge of petroleum products with aromatic content up to 50%.
2
What are the key specifications?
Tube
Nitrile, Black and Smooth, ARPM Class A Oil Resistance.
Cover
NBR/EPDM Blend, Black, Flat Corrugated, Oil Resistant
Reinforcement
Synthetic Textile with a Dual Steel Helix with an Anti-static Copper Wire
Temperature Range
-40°F (-40°C) to +194°F (+90°C)
Colors
Black
Branding
4426 Jason logo DREAMFLEX™ PETROLEUM TRANSFER and SUCTION WP PSI (BAR) Red mylar longitudinal stripe.
Specifications
Tube: ARPM Class A
Design Factor
4:1
3
What are the main product features?
- Extremely flexible. Superior Minimum Bend Radius.
- Cover is resistant to weathering and abrasion.
- Heat, ozone and salt water resistant.
- Anti-static copper wire to ground the hose.
- Safety Ohm (SΩ) ground wire embedded into the hose wall to help prevent the build-up of static electricity. SΩ wire must be secured to ground to dissipate static electricity.
4
Which sizes or configurations are available?
| Part Number 100ft |
ID | OD | Reinfor- cement |
Max. Working Pressure @ 68° F |
Vacuum @ 68°F |
Weight (lbs/ft) |
Minimum Bend Radius |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | BAR | in of Hg | in | mm | |||
| 4426-0075-100 | 3/4" | 19.10mm | 1.18" | 30.00mm | 2 | 250 PSI | 17.24 BAR | 26.0 | 0.34lbs | 0.75" | 19.00mm |
| 4426-0100-100 | 1" | 25.40mm | 1.50" | 38.00mm | 2 | 250 PSI | 17.24 BAR | 26.0 | 0.51lbs | 1.00" | 25.00mm |
| 4426-0150-100 | 1-1/2" | 38.10mm | 1.93" | 49.00mm | 2 | 250 PSI | 17.24 BAR | 26.0 | 0.65lbs | 1.50" | 38.00mm |
| 4426-0200-100 | 2" | 50.80mm | 2.41" | 61.20mm | 2 | 250 PSI | 17.24 BAR | 26.0 | 0.93lbs | 2.00" | 51.00mm |
| 4426-0250-100 | 2-1/2" | 63.50mm | 3.03" | 77.00mm | 2 | 200 PSI | 13.79 BAR | 26.0 | 1.35lbs | 2.50" | 63.50mm |
| 4426-0300-100 | 3" | 76.20mm | 3.54" | 90.00mm | 2 | 200 PSI | 13.79 BAR | 26.0 | 1.64lbs | 3.00" | 75.20mm |
| 4426-0400-100 | 4" | 101.60mm | 4.57" | 116.00mm | 2 | 150 PSI | 10.35 BAR | 26.0 | 2.40lbs | 4.00" | 101.60mm |
| 4426-0600-100 | 6" | 152.40mm | 6.75" | 171.60mm | 2 | 150 PSI | 10.35 BAR | 26.0 | 5.73lbs | 6.00" | 152.40mm |
No by the foot sales. This is a Packaged Length product.
