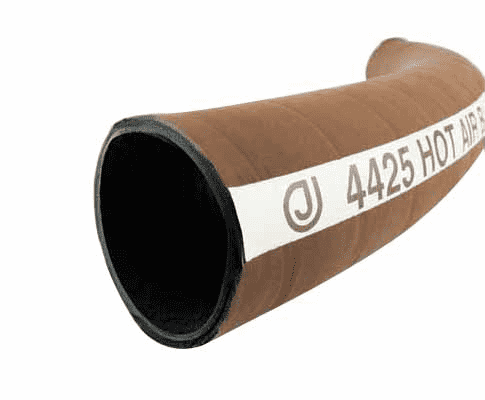

4425-0300-100 by Jason Industrial | 4425 Series | Hot Air Blower Hose | 50 PSI | 3" ID | 3.56" OD | Brown | EPDM | 100ft
Jason Industrial Inc. Hose - Material Handling Hose - 4425 Hot Air Blower Hose - Brown
Package Quantity: 100 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,549.03 |
| 8–14 | $1,483.11 |
| 15+ | $1,318.32 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
50
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Used to convey hot air from blower to tank on bulk transport trucks | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | EPDM |
| Reinforcement: | Synthetic Fabric, Wire Helix | Cover: | EPDM, Fabric Impression, Brown |
| Temperature Range: | Intermittent to +350 deg. F (+177 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | Jason logo 4425 HOT AIR 325°F WP 50 PSI 3.4 BAR. White mylar longitudinal stripe |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Plies | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 4425-0300-100 | 3" | 76.20mm | 3.56" | 90.42mm | 2 | 50 PSI | 3.45 BAR | 29.0 inHg | 1.93 lb./ft. | 2.87 KG/m | 5.50" | 139.70mm | 100ft |
| 4425-0400-100 | 4" | 101.60mm | 4.60" | 118.84mm | 2 | 50 PSI | 3.45 BAR | 29.0 inHg | 2.65 lb./ft. | 3.94 KG/m | 7.00" | 177.80mm | 100ft |
