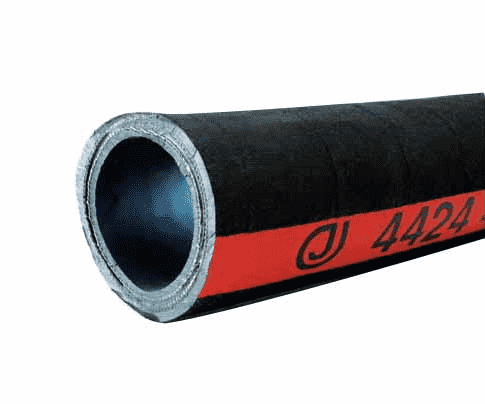

4424-0200-100 by Jason Industrial | 4424 Series | Petroleum Suction Hose | 400 PSI | 2" ID | 2.82" OD | Black | Nitrile | 100ft

4424-0200-100 by Jason Industrial | 4424 Series | Petroleum Suction Hose | 400 PSI | 2" ID | 2.82" OD | Black | Nitrile | 100ft

Sale price$2,036.25

Jason Industrial Inc. Hose - Material Handling Hose - 4424 Nitrile Petroleum Suction Hose - 400 PSI - Black

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,914.08
8–14 $1,832.63
15+ $1,629.00
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure or gravity flow (suction or discharge) SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Dual Wire Helix Cover: CR, Black, ARPM Class B
Temperature Range: -31 deg. F (-35 deg. C) to +158 deg. F (+70 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4424 PETROLEUM SUCTION WP 400 PSI 27.6 BAR. Red mylar longitudinal stripe
Other Features:
  • HD construction that handles up to 400 PSI applications
  • Cover is resistant to weathering and abrasion
  • Heat, sea water and ozone resistant
  • All sizes are full vaccum
  • Construction is with high tensile strength textile
  • Dual copper wires to ground the hose
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4424-0200-100 2" 50.80mm 2.82" 71.63mm 2 400 PSI 27.56 BAR 29.0 inHg 1.89 lb./ft. 2.81 KG/m 12.00" 304.80mm 100ft
4424-0200-200 2" 50.80mm 2.82" 71.63mm 2 400 PSI 27.56 BAR 29.0 inHg 1.89 lb./ft. 2.81 KG/m 12.00" 304.80mm 200ft
4424-0300-100 3" 76.20mm 3.88" 98.55mm 2 400 PSI 27.56 BAR 29.0 inHg 2.95 lb./ft. 4.39 KG/m 20.00" 508.00mm 100ft
4424-0300-200 3" 76.20mm 3.88" 98.55mm 2 400 PSI 27.56 BAR 29.0 inHg 2.95 lb./ft. 4.39 KG/m 20.00" 508.00mm 200ft
4424-0400-100 4" 101.60mm 4.92" 124.50mm 2 400 PSI 27.56 BAR 29.0 inHg 3.85 lb./ft. 5.72 KG/m 30.00" 762.00mm 100ft
4424-0400-200 4" 101.60mm 4.92" 124.50mm 2 400 PSI 27.56 BAR 29.0 inHg 3.85 lb./ft. 5.72 KG/m 30.00" 762.00mm 200ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4424 Series
Color(s):
  • Black
Internal Diameter:
  • 2in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
