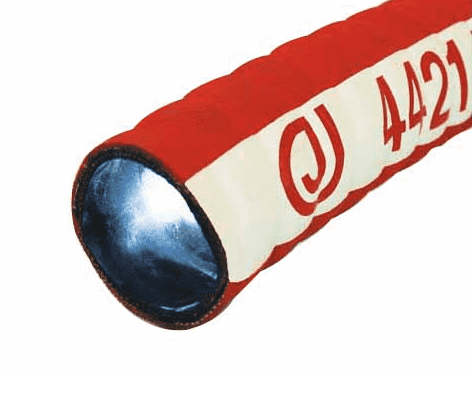

4421-0600-100 by Jason Industrial | 4421 Series | Tank Truck Hose | Corrugated | 150 PSI | 6" ID | 6.77" OD | Red | 100ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | For the transfer of petroleum products, including gasoline under pressure, gravity flow and tank farms at oil/gas drilling sites | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | Tube: ARPM Class A Cover: ARPM Class B | Tube: | Nitrile, Smooth, ARPM Class A |
| Reinforcement: | Two Synthetic Plies, Wire Helix | Cover: | CR, ARPM Class B, Corrugated, Red |
| Temperature Range: | -30 deg. F (-34 deg. C) to +180 deg. F (+82 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Branding: | Jason logo 4421 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. White mylar longitudinal stripe |
| Other Features: | |||
|
|||
| Part Number | I.D. | O.D. | Reinforcement Plies | Max. Working Press. @ 68 deg. F | Vacuum @ 68 deg. F | Weight | Min. Bend Radius | Standard Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | BAR | inHg | lb./ft. | KG/m | in. | mm | ft | ||
| Uncoupled | |||||||||||||
| 4421-0200-100 | 2" | 50.80mm | 2.48" | 63.00mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 1.18 lb./ft. | 1.76 KG/m | 4.00" | 101.60mm | 100ft |
| 4421-0300-100 | 3" | 76.20mm | 3.50" | 89.00mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 1.99 lb./ft. | 2.96 KG/m | 6.00" | 152.40mm | 100ft |
| 4421-0400-100 | 4" | 101.60mm | 4.57" | 116.00mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 2.66 lb./ft. | 3.96 KG/m | 9.00" | 228.60mm | 100ft |
| 4421-0600-100 | 6" | 152.40mm | 6.77" | 172.00mm | 2 | 150 PSI | 10.35 BAR | 29.0 inHg | 6.30 lb./ft. | 9.41 KG/m | 25.00" | 637.50mm | 100ft |
