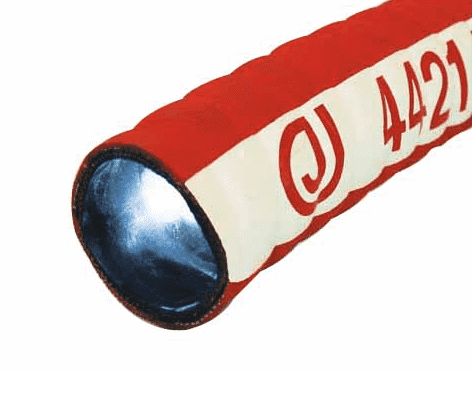

4421-0400-100 by Jason Industrial | 4421 Series | Tank Truck Hose | Corrugated | 150 PSI | 4" ID | 4.57" OD | Red | 100ft

4421-0400-100 by Jason Industrial | 4421 Series | Tank Truck Hose | Corrugated | 150 PSI | 4" ID | 4.57" OD | Red | 100ft

Sale price$2,768.75

Jason Industrial Inc. Hose - Material Handling Hose - 4421 Tank Truck Hose - Red Corrugated

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
2–3 $2,602.63
4–9 $2,491.88
10+ $2,215.00
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure, gravity flow and tank farms at oil/gas drilling sites SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, ARPM Class A
Reinforcement: Two Synthetic Plies, Wire Helix Cover: CR, ARPM Class B, Corrugated, Red
Temperature Range: -30 deg. F (-34 deg. C) to +180 deg. F (+82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4421 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Increased flexibility due to the corrugated cover
  • Lightweight, easier to handle
  • Cover is resistant to weathering and abrasion
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4421-0200-100 2" 50.80mm 2.48" 63.00mm 2 150 PSI 10.35 BAR 29.0 inHg 1.18 lb./ft. 1.76 KG/m 4.00" 101.60mm 100ft
4421-0300-100 3" 76.20mm 3.50" 89.00mm 2 150 PSI 10.35 BAR 29.0 inHg 1.99 lb./ft. 2.96 KG/m 6.00" 152.40mm 100ft
4421-0400-100 4" 101.60mm 4.57" 116.00mm 2 150 PSI 10.35 BAR 29.0 inHg 2.66 lb./ft. 3.96 KG/m 9.00" 228.60mm 100ft
4421-0600-100 6" 152.40mm 6.77" 172.00mm 2 150 PSI 10.35 BAR 29.0 inHg 6.30 lb./ft. 9.41 KG/m 25.00" 637.50mm 100ft
Note:Vacuum is temperature dependent. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4421 Series
Color(s):
  • Red
Internal Diameter:
  • 4in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
