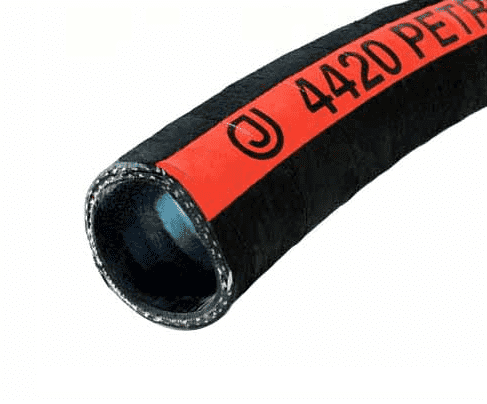

4420-0600-020 by Jason Industrial | 4420 Series | Petroleum Suction Hose | 150 PSI | 6" ID | 6.86" OD | Black | Nitrile | 20ft
Jason Industrial Inc

4420-0600-020 by Jason Industrial | 4420 Series | Petroleum Suction Hose | 150 PSI | 6" ID | 6.86" OD | Black | Nitrile | 20ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Application: For suction or discharge of petroleumbased products in truck and car operations SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two Synthetic Plies, Dual Wire Helix Cover: CR, ARPM Class B
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4420 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. Red mylar longitudinal stripe
Other Features:
  • Increased flexibility due to the dual wire helix
  • Nitrile tube is highly oil resistant. Enables hose to handle petroleum products having an aromatic content up to 50%
  • Weather and ozone resistant
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4420-0075-100 3/4" 19.05mm 1.14" 28.96mm 2 150 PSI 10.35 BAR 29.0 inHg 0.36 lb./ft. 0.54 KG/m 4.00" 101.60mm 100ft
4420-0100-100 1" 25.40mm 1.38" 35.00mm 2 150 PSI 10.35 BAR 29.0 inHg 0.49 lb./ft. 0.73 KG/m 6.00" 152.40mm 100ft
4420-0125-100 1-1/4" 31.75mm 1.69" 42.93mm 2 150 PSI 10.35 BAR 29.0 inHg 0.81 lb./ft. 1.21 KG/m 6.00" 152.40mm 100ft
4420-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 150 PSI 10.35 BAR 29.0 inHg 0.91 lb./ft. 1.35 KG/m 6.50" 165.10mm 100ft
4420-0200-100 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 inHg 1.14 lb./ft. 1.70 KG/m 8.00" 203.20mm 100ft
4420-0200-200 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 inHg 1.14 lb./ft. 1.70 KG/m 8.00" 203.20mm 200ft
4420-0250-100 2-1/2" 63.50mm 3.06" 77.72mm 2 150 PSI 10.35 BAR 29.0 inHg 1.76 lb./ft. 2.62 KG/m 12.00" 304.80mm 100ft
4420-0300-100 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 inHg 2.42 lb./ft. 3.60 KG/m 16.00" 406.40mm 100ft
4420-0300-200 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 inHg 2.42 lb./ft. 3.60 KG/m 16.00" 406.40mm 200ft
4420-0400-100 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 inHg 2.69 lb./ft. 4.00 KG/m 18.00" 457.20mm 100ft
4420-0400-200 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 inHg 2.69 lb./ft. 4.00 KG/m 18.00" 457.20mm 200ft
4420-0600-020 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 inHg 6.28 lb./ft. 9.35 KG/m 30.00" 762.00mm 20ft
4420-0600-100 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 inHg 6.28 lb./ft. 9.35 KG/m 30.00" 762.00mm 100ft
4420-0800-050 8" 203.20mm 8.90" 226.06mm 2 150 PSI 10.35 BAR 29.0 inHg 7.12 lb./ft. 10.60 KG/m 48.00" 1219.20mm 50ft
Note:Vacuum is temperature dependent. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
