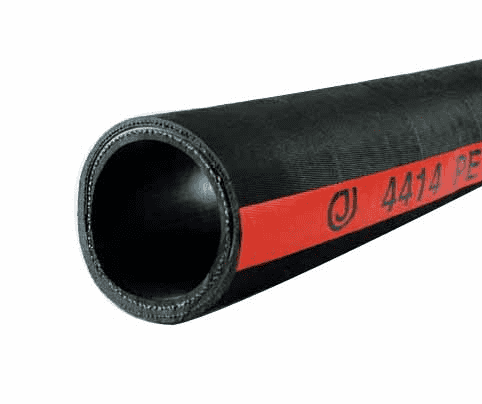

4414-0200-200 by Jason Industrial | 4414 Series | Petroleum Suction Hose | 300 PSI | 2" ID | 2.50" OD | Black | Nitrile | 200ft

4414-0200-200 by Jason Industrial | 4414 Series | Petroleum Suction Hose | 300 PSI | 2" ID | 2.50" OD | Black | Nitrile | 200ft

Sale price$3,374.67

Jason Industrial Inc. Hose - Material Handling Hose - 4414 Nitrile Petroleum Suction Hose - 300 PSI - Black

Package Quantity: 200 FT

Buy More, Save More!
Quantity Price Each
2–3 $3,172.19
4–9 $3,037.20
10+ $2,699.74
Discounts applied in cart/checkout.

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure and gravity flow SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Dual Wire Helix Cover: CR, ARPM Class B
Temperature Range: -31 deg. F (-35 deg. C) to +176 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4414 PETROLEUM SUCTION WP 300 PSI 20.70 BAR. Red mylar longitudinal stripe.
Other Features:
  • HD construction that handles up to 300 PSI applications
  • Cover is resistant to weathering and abrasion
  • Heat and ozone resistant
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4414-0100-100 1" 25.40mm 1.46" 37.08mm 2 300 PSI 20.70 BAR 29.0 inHg 0.53 lb./ft. 0.79 KG/m 3.50" 88.90mm 100ft
4414-0125-100 1-1/4" 31.75mm 1.73" 43.94mm 2 300 PSI 20.70 BAR 29.0 inHg 0.70 lb./ft. 1.04 KG/m 4.00" 101.60mm 100ft
4414-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 300 PSI 20.70 BAR 29.0 inHg 0.92 lb./ft. 1.37 KG/m 5.00" 127.00mm 100ft
4414-0200-100 2" 50.80mm 2.50" 63.50mm 2 300 PSI 20.70 BAR 29.0 inHg 1.27 lb./ft. 1.89 KG/m 8.00" 203.20mm 100ft
4414-0200-200 2" 50.80mm 2.50" 63.50mm 2 300 PSI 20.70 BAR 29.0 inHg 1.27 lb./ft. 1.89 KG/m 8.00" 203.20mm 200ft
4414-0250-100 2-1/2" 63.50mm 3.11" 78.99mm 2 300 PSI 20.70 BAR 29.0 inHg 1.66 lb./ft. 2.47 KG/m 10.00" 254.00mm 100ft
4414-0300-100 3" 76.20mm 3.62" 91.95mm 2 300 PSI 20.70 BAR 29.0 inHg 2.19 lb./ft. 3.26 KG/m 12.00" 304.80mm 100ft
4414-0300-200 3" 76.20mm 3.62" 91.95mm 2 300 PSI 20.70 BAR 29.0 inHg 2.19 lb./ft. 3.26 KG/m 12.00" 304.80mm 200ft
4414-0400-100 4" 101.60mm 4.65" 118.11mm 2 300 PSI 20.70 BAR 29.0 inHg 2.89 lb./ft. 4.30 KG/m 17.00" 431.80mm 100ft
4414-0400-200 4" 101.60mm 4.65" 118.11mm 2 300 PSI 20.70 BAR 29.0 inHg 2.89 lb./ft. 4.30 KG/m 17.00" 431.80mm 200ft
4414-0600-100 6" 152.40mm 6.91" 175.51mm 2 300 PSI 20.70 BAR 29.0 inHg 6.47 lb./ft. 9.96 KG/m 27.00" 685.80mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Product Data:

Series:
  • 4414 Series
Color(s):
  • Black
Internal Diameter:
  • 2in

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
